What Is Driver Door Module(DDM).Introduction Of DDM

What Is Driver Door Module(DDM).Introduction Of DDM

September 06 , 2023 0

What Is Driver Door Module

The role of automotive door module is to provide intelligent and centralized control of the door and the electrical components around the door. Automotive door modules generally have two structures, one is switch-integrated and the other is motor-integrated.
The role of automotive door module is to carry out intelligent centralized control of the door and the electrical components around the door. Automotive door modules are generally available in two configurations, one with integrated switches and the other with integrated motors.Atmel Corporation introduces the ATA6621 LIN System Basis Chip (SBC), which is compliant with the newly issued LIN 2.0 standard. Compared to standalone LIN transceivers, system base chips like the ATA6621 are highly integrated and include a voltage regulator and watchdog.The SBC utilizes Atmel's high-voltage BCDMOS process and operates at up to 40V, making it suitable for use in harsh environments in automotive products such as automotive door modules, seating controls, or smart sensors, and also in drivetrain products such as engine control systems. To minimize EMC issues, the ATA6621 integrates a controlled slew rate function that complies with the LIN2.0 specification, and the receiver's input filter helps reduce RF interference on the bus signal. To meet the 42V power grid requirement, the bus output can withstand up to 60V short circuit.

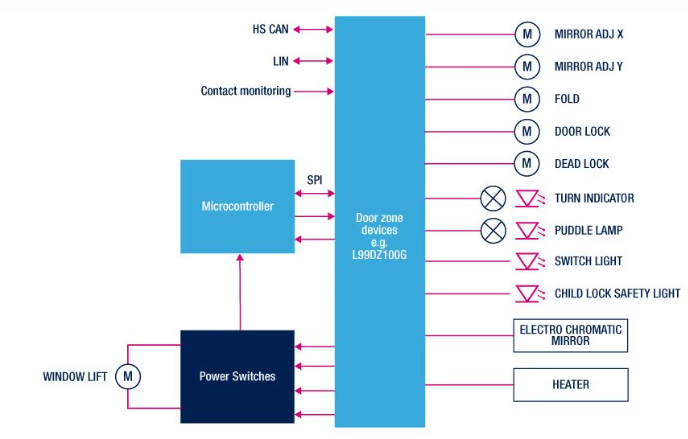

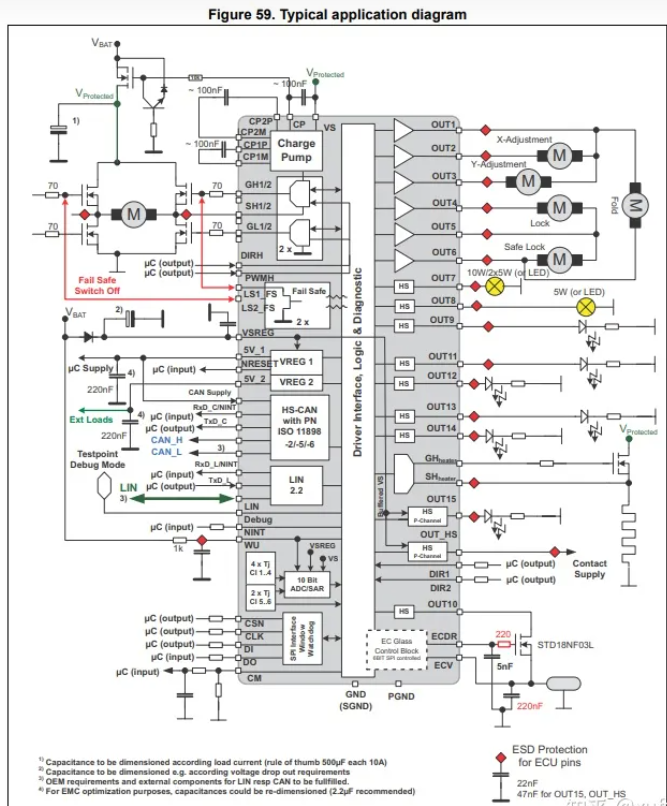

Most of the functions of the door control module have already been integrated into the BCM. But generally in high-end cars, more functions of the door are integrated in the BCM will make the BCM become huge, and also not cost-effective, so generally will be designed separately for each door a door module. But now it seems that each OEM wants to integrate this piece into the area controller. Because of the need for integration, I looked at the general design of the door control. Check the information under the know ST has a special door control chip, the basic functions can be realized through the chip. From the typical application can be seen driving door locks, windows, mirror control and a variety of LED indicators (steering, collision warning, handle ambient light) are OK. It can also be used as a driver for heated glass.
Interestingly, this chip has a EC Glass driver, I did not know at first what this is to control, online research only to know EC Glass is electro-chromic glass, electrochromic glass. The main use of this color-changing glass is the anti-glare function.
Carefully look at this chip to achieve the function are some common functions on the door, and now on the market those electric door openers, electric suction door, electric release, hidden door handles and other features are not directly integrated. Although these functions are motor-driven work, but because of different application scenarios will have different detection signals.
