Gas Discharge Tubes: Explore The Magical World OF Electrical Discharge

Gas Discharge Tubes: Explore The Magical World OF Electrical Discharge

November 03 , 2023 0

I.Working Principle OF Gas Discharge Tube

When the two electrodes of the gas discharge tube have high voltage, once the high voltage exceeds the breakdown voltage of the discharge tube itself, the gas in the tube will ionize under the action of the electric field and form a conductor, causing the original insulation state to change. Due to the grounding effect, a large amount of current and charge will be immediately grounded and released, and finally the lightning energy cannot pass through the protected equipment. When the overvoltage disappears, the gas in the tube quickly returns to the original insulation state, and the circuit returns to normal, which is the basic principle of the gas discharge tube.

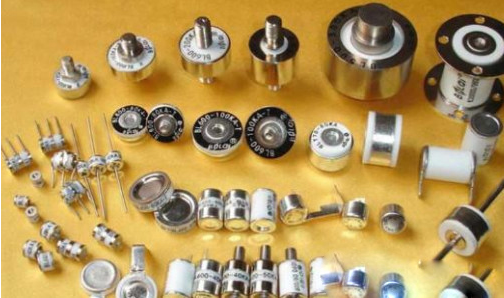

Gas Discharge Tubes: Explore The Magical World OF Electrical Discharge

II.The Basic Principle OF Gas Discharge Tube

Gas discharge means that in the gas medium, when the electric field strength is high enough, the electrons obtain enough energy to excite the gas molecules or atoms, causing them to ionize and transfer excited states, resulting in current and radiation. Gas discharge tubes take advantage of this phenomenon to achieve specific electrical characteristics by controlling the electric field and gas composition.

III.Gas Discharge Tube Application Field

Gas discharge tubes have a wide range of applications in many fields, including but not limited to the following:

Lighting: Certain models of gas discharge tubes, such as neon and argon discharge tubes, can emit bright gas discharge light and are widely used in lighting applications such as neon lights, indicators, and advertising signs.
Laser technology: Gas discharge tubes also have important applications in laser technology. Helium-neon lasers, for example, use the discharge of helium and neon to produce laser beams and are widely used in fields such as medicine, measurement and communications.
Gas detection: Certain gas discharge tubes can be used for gas detection and analysis. By controlling the electrode and gas composition, when a certain gas is present, the discharge tube will produce a specific electrical characteristic change, so as to realize the detection and identification of gas.
Electronic device protection: Gas discharge tubes can also be used to protect electronic devices. When there is an overvoltage or overcurrent in the circuit, the gas discharge tube will start the discharge process and direct the overvoltage or overcurrent to the ground or other protective devices to protect the safety of electronic devices.

IV.Common Types OF Gas Discharge Tubes

The main types of gas discharge tubes include neon discharge tubes, argon discharge tubes, deuterium gas discharge tubes, etc., which vary according to the type and characteristics of the gas filled. Different gas discharge tubes have unique characteristics in terms of electrical characteristics and luminous color.

V.The Function OF Gas Discharge Tube In Circuit

Gas discharge tube has the characteristics of large discharge capacity, small capacitance and high insulation resistance. It is often mixed with transient suppression diode, Zener diode, varistor and other devices to give full play to the advantages of various devices and optimize the protection of the circuit.

VI.How To Choose The Right Gas Discharge Tube

The choice of gas discharge tube should be based on the actual situation, such as the voltage fluctuation of the actual working environment. In general, in the direct current circuit, the breakdown voltage of the gas discharge tube should be about 2 times the working voltage, but in the AC circuit, the breakdown voltage is about 3 times the working voltage, but also consider the size of the gas discharge tube and the length of the ground wire, the shorter the ground wire is better when installed.

VII.Conclusion

Gas discharge tube is an important electronic component that utilizes the phenomenon of electrical discharge. Their working principle, luminescence mechanism, gas composition, electrical characteristics and typical applications are all key aspects to gain an in-depth understanding of gas discharge tubes. Mastering these knowledge can help us better understand the application and role of gas discharge tubes in various fields.
