Understanding Voltage Follower: Working Principle and Applications

Understanding Voltage Follower: Working Principle and Applications

November 14 , 2023 0

I.What is a Voltage Follower? An Introduction to this Essential Circuit

A voltage follower, also known as a unity-gain amplifier, a buffer amplifier, or an isolation amplifier, is a crucial component in electronic circuits. This op-amp circuit has a voltage gain of 1, which means it provides no amplification to the input signal. Instead, it faithfully follows the input voltage, hence the name "voltage follower." In other words, if a 10V input is supplied, the output voltage will also be 10V. Essentially, a voltage follower acts as a buffer, offering no amplification or attenuation to the signal it receives.

II.The Purpose and Importance of Voltage Followers in Circuit Design

You might be wondering why a voltage follower is necessary if it simply replicates the input signal. The answer lies in the unique properties it brings to a circuit. To fully understand its purpose, we need to explore the characteristics of an op amp circuit.

III.Voltage Followers and High Input Impedance: The Connection

An op amp circuit boasts an exceptionally high input impedance, and this is precisely why voltage followers are utilized. Let's dive deeper into this concept.

IV.Voltage Followers Minimize Power Draw: The Role of Input Impedance

When a circuit possesses a high input impedance, it consumes minimal current from the power source. This principle follows Ohm's Law, which states that current (I) is equal to voltage (V) divided by resistance (R) (I = V/R). As the resistance increases, the current drawn from the power source decreases. Consequently, the power of the circuit remains largely unaffected when feeding a high impedance load.

V.Comparing High and Low Impedance Loads: Visualizing the Difference

To illustrate the impact of impedance on a circuit, let's examine two scenarios.

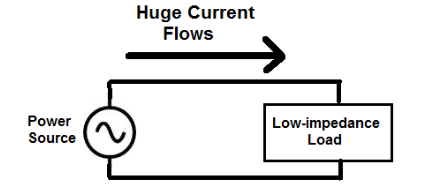

Scenario 1: Low-Impedance Load

In the first scenario, a power source is connected to a circuit with a low-impedance load. As demonstrated in the following illustration, the load demands and draws a significant amount of current due to its low impedance. Applying Ohm's Law once more, we see that with very low resistance, the current draw is substantial. Consequently, this excessive current drains power from the source, leading to disturbances and inefficiency.

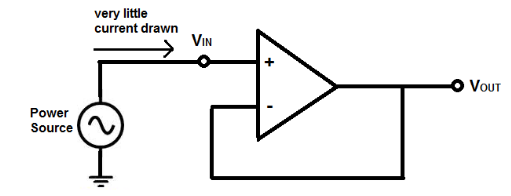

Scenario 2: Op-Amp Voltage Follower

Now, let's explore the second scenario involving a circuit connected to an op-amp voltage follower. As portrayed below, this circuit draws only a minimal amount of current from the power source. By virtue of the op amp's high impedance, it consumes very little current. Since an op amp with no feedback resistors produces the same output, the circuit mirrors the input signal. This is precisely why voltage followers are employed - they exhibit low current draw, ensuring minimal disturbance to the original circuit while providing identical voltage output. In essence, voltage followers function as isolation buffers, effectively isolating the circuit and preserving power integrity.

VI.The Importance OF Voltage Trackers In Electronic Circuits

Voltage Follower (voltage follower) plays an important role in electronic circuits and signal processing for several reasons:
Signal buffering: Voltage followers are able to provide high input impedance and low output impedance, enabling them to effectively buffer signals. When the input signal source has a high output impedance, using Voltage Follower can prevent the output impedance of the signal source from affecting the load, thereby maintaining signal integrity.
Signal amplification: The Voltage Follower can be used as the front stage of the signal amplifier, protecting the signal source by providing a high input impedance and passing the amplified signal to the downstream circuit or load with a low output impedance. This is useful for applications where the signal needs to be amplified without changing its waveform.
Voltage isolation: Voltage Follower can also be used for voltage isolation applications. Electrical isolation can be achieved by adding isolation elements (such as optocouplers or transformers) between the input and output, effectively preventing signal interference and ground loop problems.
Control and feedback systems: Voltage Follower is often used in control and feedback systems as a reference voltage or reference voltage provider. By connecting Voltage followers to the feedback network, precise control and stability of the system can be achieved.
Sensor interface: The output voltage of many sensors is low and requires signal processing through an amplifier circuit. Voltage Follower can act as part of the sensor interface circuit, providing appropriate amplification and buffering to ensure that the sensor signal is transmitted and processed accurately.

VII.Conclusion

Voltage followers, acting as unity-gain amplifiers, play a crucial role in circuit design. By preserving the original signal without amplification or attenuation, they contribute to power efficiency and signal integrity. These components, with their high input impedance, minimize current draw from power sources and create an isolated buffer that shields circuits from disturbances. In essence, voltage followers are invaluable tools that enhance the stability and performance of electronic systems.
