Capacitor: Working Principle, Types, And Applications Explained

Capacitor: Working Principle, Types, And Applications Explained

August 03 , 2023 0

What Is a Capacitor?

A capacitor is an electronic component used to store electrical charge. It consists of two conductive plates or electrodes separated by an insulating material. When a voltage is applied to the capacitor, positive charges accumulate on one electrode while negative charges accumulate on the other, creating an electric field. This electric field causes the capacitor to store charge, which can be released when needed.

How Does a Capacitor Work?

The working principle of a capacitor is based on the presence of an electric field. When voltage is applied to the electrodes of the capacitor, electrons flow from one electrode to the other, creating a current. However, due to the insulating material of the capacitor, electrons cannot flow directly from one electrode through the insulator to the other. Instead, electrons are attracted to the surface of the electrodes, forming equal but opposite charges on the surfaces. As charge continues to accumulate, the electric field strengthens. Once the electric field reaches a certain level, the capacitor can no longer absorb any more charge, and it is said to be in a saturated state.

When a capacitor is in a saturated state, it stores a certain amount of charge, which can be released when needed. For instance, in a direct current (DC) circuit, when the power source is disconnected, the capacitor releases its stored charge, keeping the circuit powered. In alternating current (AC) circuits, capacitors can filter the signal by continuously absorbing and releasing charges, making the signal more stable.

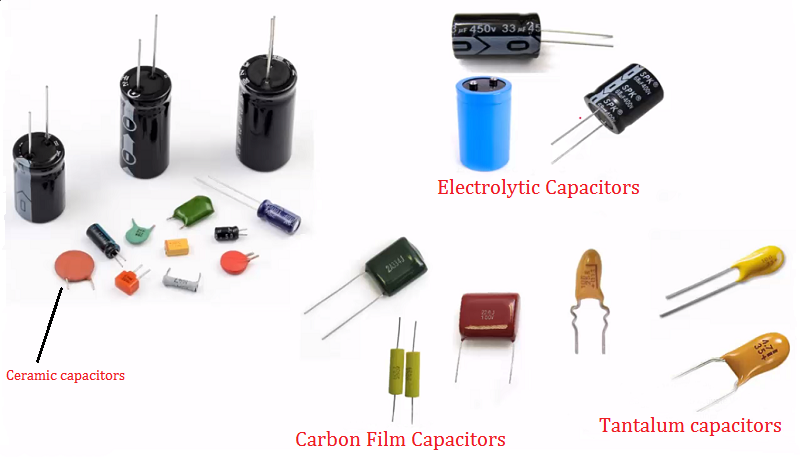

The Types of Capacitor

Capacitors come in various types based on their structure and applications. Here are some common types of capacitors:

Electrolytic Capacitors: Electrolytic capacitors use an electrolyte as an insulating material and are further divided into aluminum electrolytic capacitors and tantalum electrolytic capacitors. They have relatively large capacitance values and are commonly used in high-current applications, such as power supply filtering.
Ceramic Capacitors: Ceramic capacitors use ceramic materials as the insulating material and are commonly found in high-frequency applications and signal coupling.
Capacitive Touchscreens: Capacitive touchscreens detect user input by sensing the charge generated during touch and are widely used in smartphones, tablets, and other devices.
Transformer Coupling Capacitors: These capacitors are used to couple two circuits, transmitting signals without affecting the DC circuit.
Supercapacitors: Supercapacitors have high energy density and are suitable for applications that require high-energy pulses, such as flashlights and electric vehicles.

What Are the Applications of Capacitors?

Capacitors have widespread applications across various industries. Some common applications include:

Capacitors for Power Conditioning

The conditioning of power supplies is one of the most important applications of capacitors. Capacitors permit only AC signals to pass when they are charged, blocking DC signals. By separating or decoupling different parts of electrical circuits, this capacitor effect reduces noise and improves efficiency as a result. Utility substations also use capacitors to counteract inductive loading from transmission lines.

Capacitors for Signal Processing

In the field of information technology, capacitors are used to represent binary information as bits in Dynamic Random Access Memory (DRAM) devices. A capacitor can also be used in conjunction with an inductor to tune circuits to specific frequencies, a method that is exploited by radio receivers, speakers, and analog equalizers.

Capacitors for Energy Storage

Electrical energy has been stored in capacitors since the late 18th century. Individual capacitors do not hold much energy, providing enough power only during temporary power outages or when additional power is needed for electronic devices. A number of applications use capacitors as energy sources, including:

Audio equipment
Camera flashes
Power supplies
Magnetic coils
Lasers

The supercapacitors have high capacitances of up to 2 kF. These capacitors store large amounts of energy and offer new technological possibilities in areas like electric cars, regenerative braking in the automotive industry and industrial electrical motors, computer memory backup during power outages, etc.

Capacitors as Sensors

A capacitor can be used as a sensor to measure a wide range of things, such as humidity, mechanical strain, and fuel level. In the sensing application, two aspects of capacitor construction are used - the distance between parallel plates and their materials. Mechanical changes such as acceleration and pressure are detected by the former, while air humidity is detected by the latter.

FAQs on capacitors

1. What is a variable capacitor?

As the name suggests, a variable capacitor is one in which the capacitance can be altered according to necessity to meet a particular range of requirements. A variable capacitor is made up of two metal plates, with one fixed and the other movable. Its main function is to determine the resonant frequency of the LC circuit by making the two plates fixed to each other. Variable frequency capacitors are divided into two types, tuning capacitors and trimming capacitors.

2. What are ultracapacitors?

The ultracapacitor, also known as the supercapacitor, is a high-capacity capacitor that has a capacitance value that is much higher than that of other capacitors, yet it operates at a lower voltage limit.

3. How long does a capacitor last?

In most cases, capacitors have a life expectancy of about 20 years.

4. How does the shape of the capacitor affect its capacitance?

The shape of a capacitor significantly affects its capacitance. Capacitance is a measure of a capacitor's ability to store electrical charge, and it is directly influenced by the physical characteristics of the capacitor, including its shape. The three primary factors that are impacted by the shape of the capacitor are the surface area of the plates, the distance between the plates, and the dielectric material used between the plates.

Surface Area of the Plates: The larger the surface area of the plates, the higher the capacitance of the capacitor. This is because a larger area allows more charge to be stored on the plates. When the surface area increases, there is more room for electric field lines to terminate on the plates, leading to a higher charge accumulation. For example, a parallel plate capacitor with larger plates will have a higher capacitance than a similar capacitor with smaller plates.
Distance Between the Plates: The distance between the plates of the capacitor, known as the separation or gap, also plays a crucial role in determining capacitance. A smaller distance between the plates leads to a higher capacitance. This is because the electric field between the plates becomes stronger when the distance is reduced. A stronger electric field results in more charge being stored for a given voltage applied across the plates.
Dielectric Material: The dielectric material used between the plates affects capacitance. The dielectric constant of the material determines how much electric flux can pass through it. A higher dielectric constant allows more electric flux, resulting in a higher capacitance. Different dielectric materials have different dielectric constants, so changing the dielectric material can alter the capacitance of the capacitor.
