Formula For Calculating Capacitance Reactance - Calculating Reactance

Formula For Calculating Capacitance Reactance - Calculating Reactance

November 13 , 2023 0

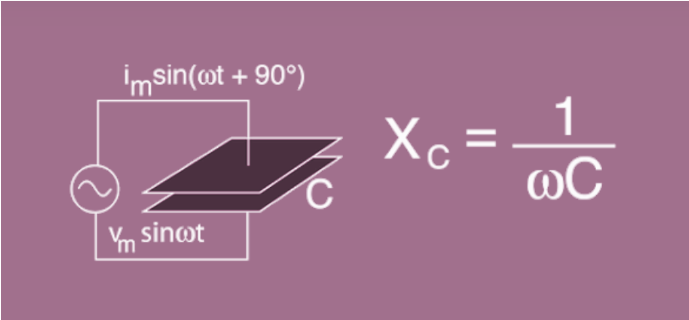

I.The Reactance OF A Capacitor

Reactance of a capacitor refers to the impedance of the capacitor to alternating current. Reactance is a complex number, usually denoted by the symbol X. The reactance of a capacitor is related to the capacitance value and the frequency of the alternating current.
The reactance of a capacitor can be calculated using the following formula:
X = -1 / (2πfC)
Where X is the reactance of the capacitor, f is the frequency of alternating current, and C is the capacitance value of the capacitor.
In this formula, -1 / (2πfC) represents the reactance value of a capacitor, where the frequency f is expressed in Hertz (Hz) and the capacitance C is expressed in farads (F). The unit of reactance is usually ohms (Ω).
It should be noted that the value of reactance is negative, because the capacitor's response to alternating current causes the current to be ahead of the voltage. The negative sign of reactance indicates that the phase of the current in the capacitor is ahead of the voltage.

II.Resistance OF Capacitors - Capacitive Reactance

In a pure resistance circuit, there is no difference in phase between voltage and current, and the waveform change trend of both is the same. And in the presence of capacitors or inductors in the circuit, voltage and current in the phase of the difference, the measurement of this circuit needs to use the concept of "impedance", it is a broader sense of "resistance", in particular, for pure capacitance caused by impedance, called "tolerance".

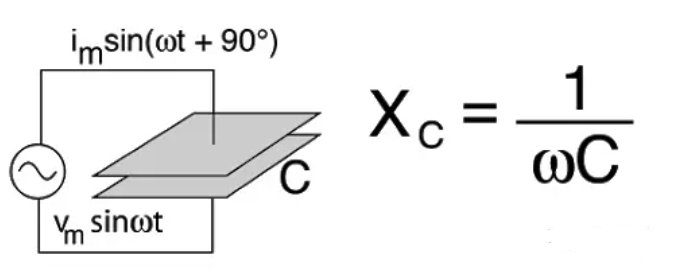

The formula for calculating the tolerance is as follows:

III.Point OF Attention In Capacitive Reactance

The nature of capacitive reactance: The capacitor's response to alternating current is to cause the current to advance ahead of the voltage. This means that in a capacitor, the phase of the current is ahead of the phase of the voltage. This is in contrast to inductive reactance, which causes the current to lag behind the voltage.
Effect of frequency on capacitive reactance: Capacitive reactance is inversely proportional to the frequency of alternating current. With the increase of frequency, the capacitance reactance decreases. As the frequency decreases, the capacitive reactance increases. This is because at high frequencies, the capacitor's resistance to the current is smaller, while at low frequencies, the capacitor's resistance to the current is greater.
Relation between capacitance reactance and capacitance value: Capacitance reactance is inversely proportional to capacitance value. A capacitor with a larger capacitance value has less reactance to alternating current, while a capacitor with a smaller capacitance value has more reactance to alternating current.
Unit of capacitive reactance: The unit of capacitive reactance is usually ohms (Ω), the same as the unit of resistance. It represents the impedance of the capacitor to alternating current, that is, how difficult it is for alternating current to pass through the capacitor.
Capacitive reactance applications: Capacitive reactance plays an important role in circuit design and analysis. It can be used to calculate the impedance of a capacitor at a specific frequency and determine its effect on current and voltage in a circuit. Capacitive reactance is also used to calculate the total impedance in a circuit and is used in applications such as filtering, frequency selection, and phase control.
Calculate the total impedance of a capacitor: The total impedance of a capacitor consists of its capacitive reactance and the impedance of any other resistance or inductance. In AC circuits, capacitance reactance and other impedances can be represented by impedance in the complex form, and then complex operations can be performed to calculate the total impedance.
By understanding the properties and calculation methods of capacitive reactance, the behavior of capacitors in AC circuits can be better understood and applied to circuit design and analysis.
