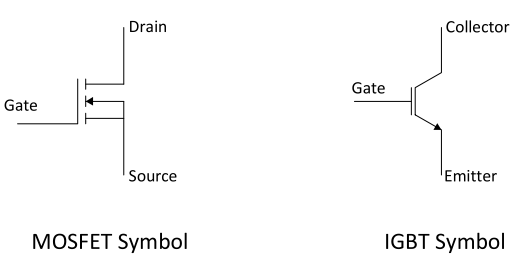

The gate serves as the electrically isolated control terminal for both MOSFETs and IGBTs, distinguishing them from their other terminals, which are either the source and drain or the emitter and collector. To activate a MOSFET or IGBT, a voltage is typically applied to the gate relative to the source or emitter. In order to induce conduction in these switching devices, the gate terminal must be positively charged in relation to its source or emitter.
The behavior of power devices during switching is influenced by the parasitic capacitances among the three terminals: gate-to-source (Cgs), gate-to-drain (Cgd), and drain-to-source (Cds). These capacitances are typically non-linear and vary with bias voltage. Charging the gate capacitor turns the power device ON, allowing current flow between its drain and source terminals. Discharging it, on the other hand, turns the device OFF, blocking a significant voltage across the drain and source terminals.
The gate voltage of a power device remains unchanged until its gate input capacitance is charged, and the device doesn't transition to the ON state until its gate voltage surpasses the gate threshold voltage (Vth). Vth denotes the minimum gate bias necessary to establish a conduction path between the device's source and drain regions. To operate a power device as a switch, a voltage considerably higher than Vth must be applied between the gate and source or emitter terminal.
In high-power applications, it's impractical to directly drive the gate of a power switch with the output of a logic IC (such as a PWM controller). The limited current capabilities of these logic outputs mean that charging the gate capacitance would take an excessive amount of time, likely longer than the duration of a switching period. Consequently, dedicated drivers are essential to apply voltage and supply drive current to the power device's gate. This driver circuit can take various forms, including dedicated ICs, discrete transistors, or transformers. Alternatively, it may be integrated within a PWM controller IC.
A gate driver functions as a power amplifier, receiving a low-power input from a controller IC and generating the necessary high-current gate drive for a power device. It's utilized when a PWM controller lacks the output current required to drive the gate capacitance of the associated power device.

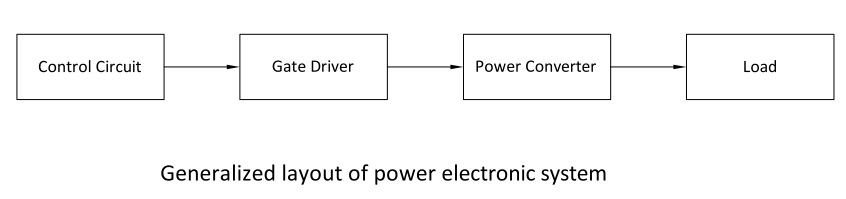

The gate driver circuit plays a vital role within power electronics systems, serving as a crucial interface between high-power electronics and control circuits. Its primary function is to drive power semiconductor devices effectively. The performance of gate driver circuits significantly influences the output of DC-DC converters or SMPS. If the gate driver circuit fails to properly drive the power device's gate, the output of the DC-DC converter will deviate from the intended design specifications. Consequently, meticulous attention to the design of gate driver circuits is imperative in the development of power electronic converters.
Here are some common types of gate drivers:
- Single-channel gate drivers: These are designed to drive a single power semiconductor device, suitable for simpler applications or where only one switch is required.
- Multi-channel gate drivers: These gate drivers can control multiple power semiconductor devices simultaneously, often used in applications requiring parallel operation or multi-phase systems.
- High-side gate drivers: These drivers are specifically designed to drive the high-side switch in a half-bridge or full-bridge configuration, where the switch is not referenced to ground. They incorporate level shifting circuitry to handle the high-side voltage.
- Low-side gate drivers: Unlike high-side drivers, low-side gate drivers are meant for driving the low-side switch in half-bridge or full-bridge configurations, where the switch is referenced to ground.
- Isolated gate drivers: These gate drivers provide electrical isolation between the input and output sections, crucial for safety and noise immunity in high-voltage applications. They often use techniques like optocouplers or transformers for isolation.
- Non-isolated gate drivers: These drivers don't provide electrical isolation between input and output. They are simpler and more cost-effective than isolated gate drivers but may not be suitable for high-voltage applications where isolation is necessary.
- Bootstrap gate drivers: These drivers utilize a bootstrap capacitor to provide the high-side gate drive voltage, enabling efficient driving of high-side MOSFETs in half-bridge or full-bridge configurations without requiring an external power supply.
- Charge-pump gate drivers: Charge-pump gate drivers generate the required voltage levels for driving the gate of power semiconductor devices through charge-pump circuits, often used in applications where a high-side power supply is unavailable.
- Integrated gate drivers: Some gate drivers are integrated into power modules or integrated circuit (IC) packages, simplifying the design and reducing component count in power electronic systems.
- High-speed gate drivers: These gate drivers are optimized for high-frequency switching applications, minimizing switching losses and improving efficiency.
Gate Driver Isolation
Gate drive circuits in power inverters and converters often necessitate electrical isolation for functional and safety reasons. Regulatory and safety certification agencies mandate isolation to prevent shock hazards and safeguard low-voltage electronics from damage caused by faults in the high-power side circuit or human error on the control side. The electrical isolation between different functional circuits within a system prevents direct conduction paths between them, allowing individual circuits to maintain distinct ground potentials. Signal and power transmission between isolated circuits can still occur using inductive, capacitive, or optical methods.
Many applications of power devices, such as converters requiring high power density and efficiency, demand an isolated gate drive circuit. For instance, in power converter topologies like half-bridge, full-bridge, buck, two-switch forward, and active clamp forward, high and low switches are utilized because low-side drivers cannot directly drive the upper power device. Isolated gate drivers are necessary for the upper power devices since their source and emitter are not at ground potential (floating).
In a simple bridge topology structure with a driving circuit, the source terminal of switch 1 can float anywhere from ground to DC bus potential. Thus, two components are essential for driving high-side switches:
- Floating supply: To power any circuitry associated with this floating midpoint potential.
- Level shifter: To transmit the PWM control signal to the floating driver circuitry.
Isolation Techniques
Essentially, two commonly utilized methods exist for implementing isolated gate drivers: magnetic, which employs gate drive transformers, and optical, which utilizes optocouplers.
