SMA Connectors: Key Components In Wireless Communications

SMA Connectors: Key Components In Wireless Communications

December 22 , 2023 0

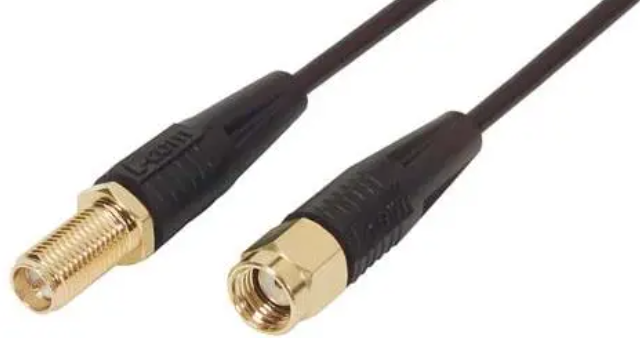

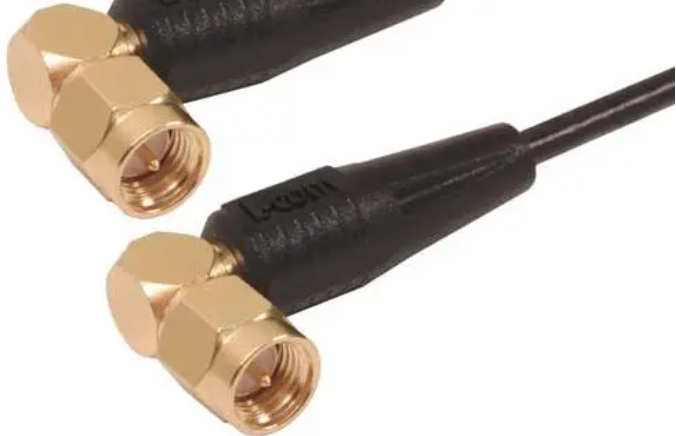

An SMA connector is a common radio frequency (RF) connector used to connect radio frequency signals. SMA stands for "SubMiniature Version A", also known as "Miniature Version A". This connector is commonly used to connect antennas, modems, WiFi devices, radio devices, microwave devices, etc.There are two types of SMA connectors, male connectors and female connectors. The male connector has an internal thread and an external pin joint, while the female connector has an internal jack and an external thread. SMA connectors provide excellent RF performance, such as high frequency response and low distortion.

What Is SMA Connector?

SMA is commonly used to provide RF connections between circuit boards, and many microwave components include filters, attenuators, mixers, and oscillators. The connector has a threaded external connection that has a hexagonal shape and allows tightening with a wrench. Special torque wrenches can be used to tighten them to the correct tightness, allowing a good connection to be achieved without over-tightening.

The first SMA connector is designed for 141 semi-rigid coaxial cables. The original SMA connectors can be called minimal connectors because the center of the coaxial cable forms the center pin of the connection, eliminating the need for a transition between the coaxial center conductor and the special connector center pin.

It has the advantage that the cable dielectric is connected directly to the interface without an air gap, and the disadvantage is that only a limited number of connect/disconnect cycles can be performed. However, for applications using semi-rigid coaxial cables, this is unlikely to be a problem, as the installation is usually fixed after initial assembly.

.

Performance OF SMA Connectors

SMA connectors are designed to have a constant, 50 ohm impedance on the connector. The SMA connector was originally designed and specified for operation up to 18 GHz, although some versions have a top frequency of 12.4 GHz and some are specified for 24 or 26.5 GHz. Higher frequency caps may require operating with higher return loss.

In general, SMA connectors have a higher reflection coefficient than other connectors up to 24 GHz. This is due to the difficulty of precisely fixing the dielectric support, but despite this difficulty, some manufacturers have managed to overcome this problem appropriately and are able to specify their connectors for operation at 26.5GHz.

For flexible cables, the frequency limit is usually determined by the cable rather than the connector. This is because the cables accepted by SMA connectors are small, and their losses are naturally much greater than those of the connectors, especially at the frequencies they may be used.

Rated Power OF SMA Connectors

In some cases, the power rating of the SMA connector may be important. The key parameter that determines the average power handling capability of a coaxial connector is its ability to transmit high currents and maintain the heat rise to a moderate temperature.

The heating effect is mainly caused by the contact resistance, which is a function of the contact surface area and the way the contact pad is held together. A key area is the center contacts, which must be formed correctly and fit together well. It should also be noted that the average power rating decreases with frequency because the resistance loss increases with frequency.

Power processing data for SMA connectors varies widely between manufacturers, but some numbers suggest that some can handle 500 watts at 1GHz and drop to slightly less than 200 watts at 10 GHz, but this is also measured data and may actually be higher.

SMA Connector Function

The SMA connector is a small, round RF connector that is widely used in high-frequency communications and microwave applications. The role of the SMA connector is to connect the source and target devices of the RF signal in order to transmit electrical signals and data. Common functions and roles of SMA connectors include:
1. Low distortion: The threaded connection can provide a reliable mechanical connection, so as to achieve low distortion RF transmission.
2. High frequency broadband: a wide range of frequencies can cover high frequency signals up to 18GH
3. High impedance: With 50 ohm impedance, it can match many commonly used RF components and equipment
4. Miniaturized design: The miniaturized design makes it suitable for highly integrated miniature RF circuits and devices.
5. High temperature tolerance: can operate in high temperature environment, suitable for high temperature industrial and aerospace applications.
In short, the SMA connector is an important RF connector, and its functions and roles can help achieve efficient RF signal transmission and data communication.
