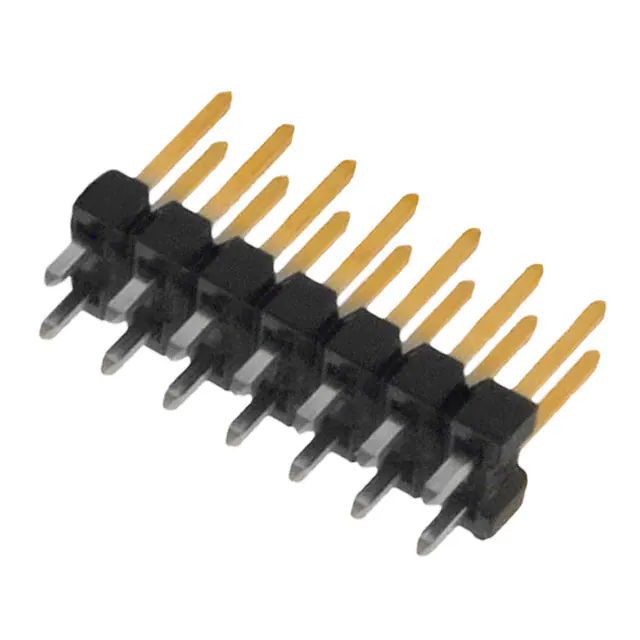

0010897142

0010897142
Molex
CONN HEADER VERT 14POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Length - Mating
0.240" (6.10mm)
Contact Finish - Post
Tin
Number of Rows
2
Insulation Color
Black
Contact Type
Male Pin
Pitch - Mating
0.100" (2.54mm)
Number of Positions Loaded
All
Contact Shape
Square
Features
-
Voltage Rating
-
Base Product Number
001089
Ingress Protection
-
Current Rating (Amps)
-
Mated Stacking Heights
-
Contact Finish Thickness - Post
74.8µin (1.90µm)
Mounting Type
Through Hole
Fastening Type
Push-Pull
Overall Contact Length
0.437" (11.10mm)
Contact Finish - Mating
Gold
Applications
Automotive, General Purpose, Lighting, Medical, Telecommunications
Insulation Height
0.090" (2.29mm)
Number of Positions
14
Style
Board to Board or Cable
Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled
Connector Type
Header, Breakaway
Shrouding
Unshrouded
Mfr
Molex
Product Status
Active
Termination
Solder
Operating Temperature
-
Material Flammability Rating
UL94 V-0
Package
Bulk
Series
C-Grid 70280
Row Spacing - Mating
0.100" (2.54mm)
Contact Length - Post
0.107" (2.71mm)
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Contact Material
Copper Alloy
