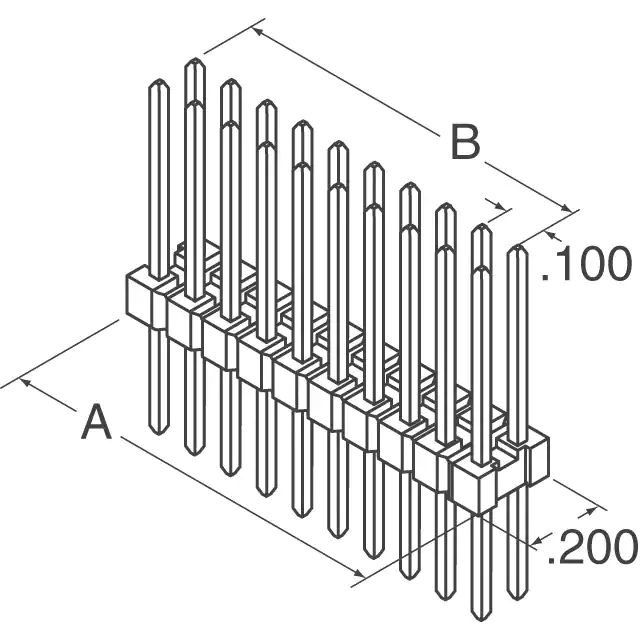

0010897162

0010897162
Molex
CONN HEADER VERT 16POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Length - Mating
0.240" (6.10mm)
Shrouding
Unshrouded
Contact Shape
Square
Contact Material
Copper Alloy
Mfr
Molex
Termination
Solder
Contact Length - Post
0.107" (2.71mm)
Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled
Features
-
Insulation Color
Black
Voltage Rating
-
Base Product Number
001089
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
Number of Positions
16
Style
Board to Board or Cable
Overall Contact Length
0.437" (11.10mm)
Product Status
Active
Row Spacing - Mating
0.100" (2.54mm)
Fastening Type
Push-Pull
Applications
Automotive, General Purpose, Lighting, Medical, Telecommunications
Contact Type
Male Pin
Current Rating (Amps)
-
Contact Finish Thickness - Post
74.8µin (1.90µm)
Pitch - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Operating Temperature
-
Mated Stacking Heights
-
Number of Rows
2
Mounting Type
Through Hole
Ingress Protection
-
Connector Type
Header, Breakaway
Number of Positions Loaded
All
Insulation Height
0.090" (2.29mm)
Series
C-Grid 70280
Package
Bulk
Contact Finish Thickness - Mating
15.0µin (0.38µm)
