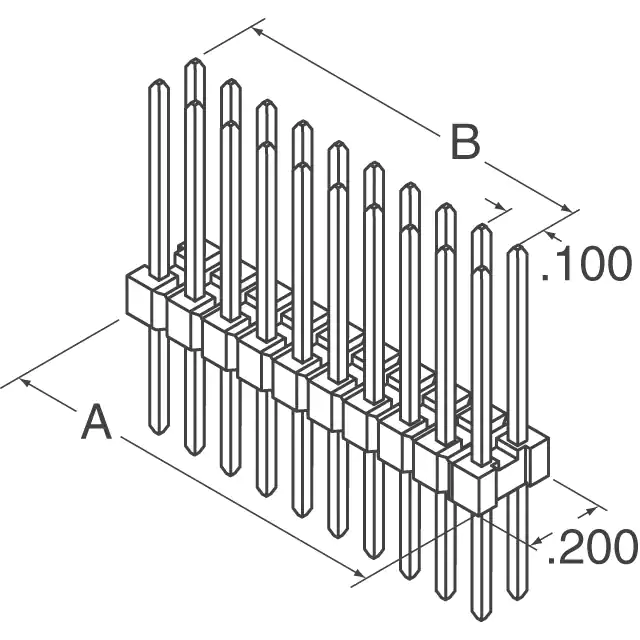

0010897542

0010897542
Molex
CONN HEADER VERT 54POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Fastening Type
Push-Pull
Mfr
Molex
Applications
Automotive, General Purpose, Lighting, Medical, Telecommunications
Contact Material
Copper Alloy
Product Status
Active
Contact Type
Male Pin
Contact Finish - Mating
Gold
Mated Stacking Heights
-
Number of Positions
54
Number of Positions Loaded
All
Contact Shape
Square
Number of Rows
2
Material Flammability Rating
UL94 V-0
Voltage Rating
-
Contact Finish Thickness - Post
74.8µin (1.90µm)
Base Product Number
001089
Pitch - Mating
0.100" (2.54mm)
Shrouding
Unshrouded
Mounting Type
Through Hole
Series
C-Grid 70280
Overall Contact Length
0.437" (11.10mm)
Insulation Color
Black
Package
Bulk
Contact Length - Mating
0.240" (6.10mm)
Insulation Height
0.090" (2.29mm)
Current Rating (Amps)
-
Connector Type
Header, Breakaway
Style
Board to Board or Cable
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Termination
Solder
Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled
Features
-
Operating Temperature
-
Row Spacing - Mating
0.100" (2.54mm)
Contact Length - Post
0.107" (2.71mm)
Contact Finish - Post
Tin
Ingress Protection
-
