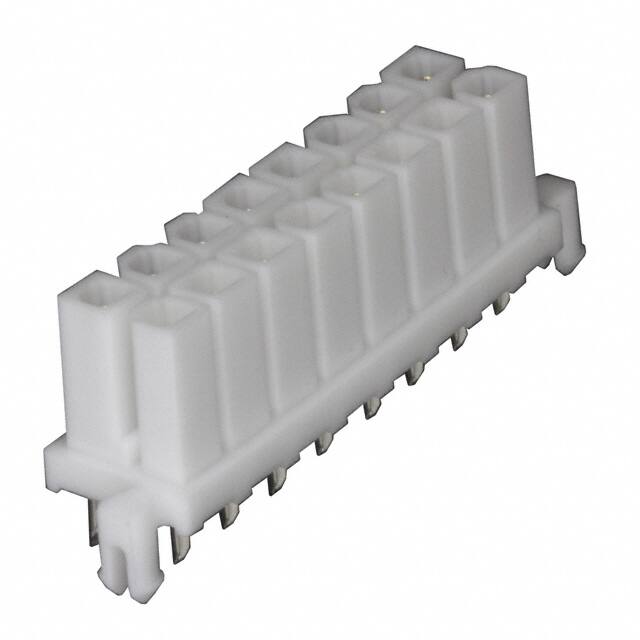

0015247163

0015247163
Molex
CONN RCPT 16POS 0.165 GOLD PCB
Rectangular Connectors - Headers, Receptacles, Female Sockets
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Number of Rows
2
Contact Finish - Mating
Gold
Contact Length - Post
0.138" (3.50mm)
Features
Board Lock
Contact Shape
Square
Connector Type
Receptacle
Series
Mini-Fit BMI 42385
Row Spacing - Mating
0.165" (4.20mm)
Contact Type
Female Socket
Style
Board to Board or Cable
Number of Positions
16
Operating Temperature
-40°C ~ 105°C
Mfr
Molex
Package
Tray
Product Status
Active
Termination
Solder
Fastening Type
Push-Pull
Insulation Height
0.446" (11.33mm)
Number of Positions Loaded
All
Contact Finish - Post
Tin
Pitch - Mating
0.165" (4.20mm)
Mounting Type
Through Hole
Insulation Color
Natural
Ingress Protection
-
Mated Stacking Heights
-
Current Rating (Amps)
-
Voltage Rating
600V
Applications
General Purpose, Industrial, Medical, Telecommunications
Contact Finish Thickness - Post
100.0µin (2.54µm)
Material Flammability Rating
UL94 V-0
Insulation Material
Polyamide (PA66), Nylon 6/6
Contact Material
Brass
Base Product Number
001524
