0015286242

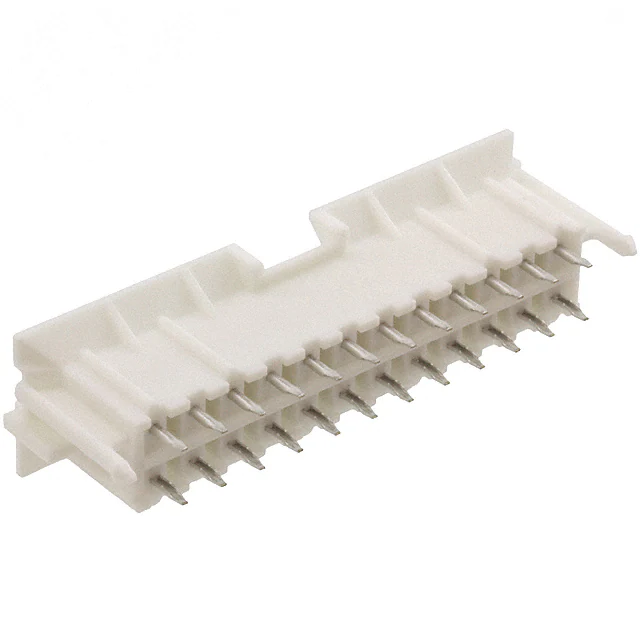

0015286242
Molex
CONN HEADER VERT 24POS 4.2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Insulation Color
Natural
Contact Type
Male Pin
Mounting Type
Through Hole
Contact Length - Mating
-
Contact Finish - Mating
Gold
Mated Stacking Heights
-
Connector Type
Header
Number of Positions
24
Number of Rows
2
Contact Length - Post
0.138" (3.50mm)
Insulation Height
0.555" (14.10mm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Mfr
Molex
Series
Mini-Fit BMI 42440
Shrouding
Shrouded - 4 Wall
Contact Material
Brass
Insulation Material
Polyamide (PA66), Nylon 6/6
Current Rating (Amps)
-
Base Product Number
001528
Package
Tray
Termination
Solder
Overall Contact Length
-
Contact Shape
Square
Applications
General Purpose, Industrial, Medical, Telecommunications
Product Status
Active
Pitch - Mating
0.165" (4.20mm)
Style
Board to Board or Cable
Fastening Type
Latch Holder
Contact Finish Thickness - Post
100.0µin (2.54µm)
Number of Positions Loaded
All
Row Spacing - Mating
0.165" (4.20mm)
Features
Board Lock
Operating Temperature
-
Ingress Protection
-
Contact Finish - Post
Tin
Material Flammability Rating
UL94 V-0
Voltage Rating
-
