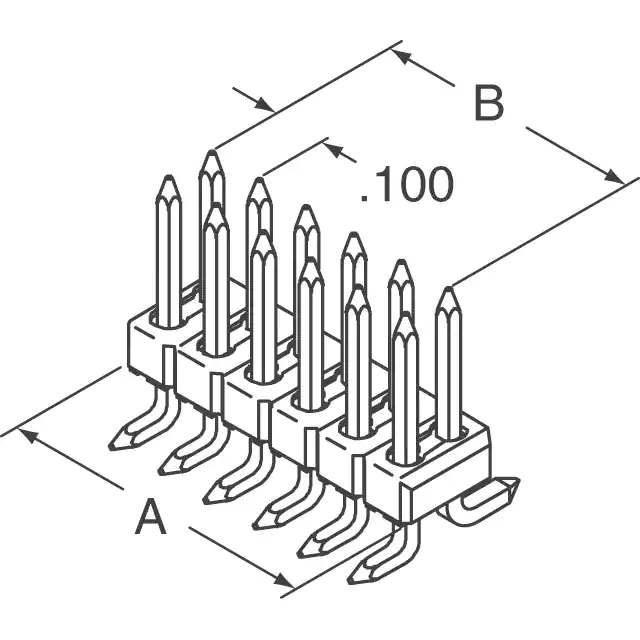

0015912180

0015912180
Molex
CONN HEADER SMD 18POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Base Product Number
001591
Contact Finish - Mating
Tin
Mfr
Molex
Pitch - Mating
0.100" (2.54mm)
Mounting Type
Surface Mount
Insulation Height
0.090" (2.29mm)
Current Rating (Amps)
-
Termination
Solder
Material Flammability Rating
UL94 V-0
Voltage Rating
-
Series
C-Grid 71308
Number of Positions Loaded
All
Insulation Color
Black
Product Status
Active
Overall Contact Length
-
Operating Temperature
-
Number of Positions
18
Style
Board to Board or Cable
Contact Length - Mating
0.240" (6.10mm)
Features
-
Package
Tube
Shrouding
Unshrouded
Contact Finish Thickness - Mating
150.0µin (3.81µm)
Contact Type
Male Pin
Row Spacing - Mating
0.100" (2.54mm)
Contact Material
Copper Alloy
Ingress Protection
-
Mated Stacking Heights
-
Contact Finish Thickness - Post
150.0µin (3.81µm)
Connector Type
Header, Breakaway
Fastening Type
Push-Pull
Contact Shape
Square
Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled
Number of Rows
2
Contact Length - Post
-
Contact Finish - Post
Tin
Applications
Automotive, General Purpose, Lighting, Medical, Telecommunications
