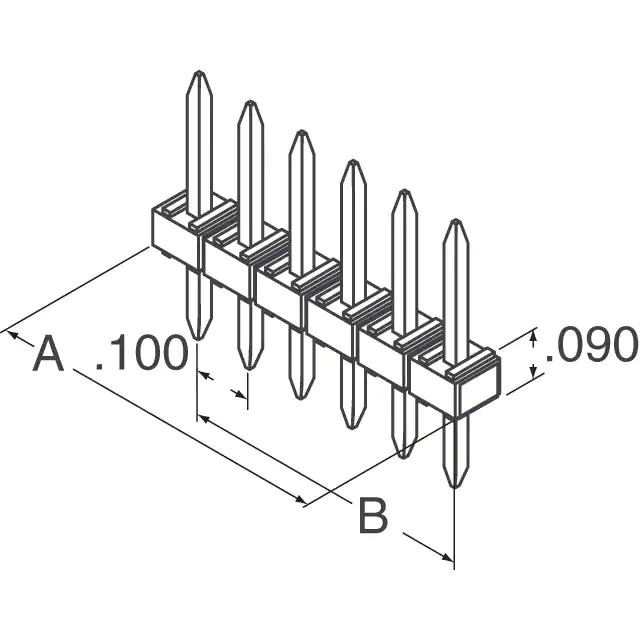

0022284281

0022284281
Molex
CONN HEADER VERT 28POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Finish Thickness - Post
100.0µin (2.54µm)
Termination
Solder
Contact Material
-
Contact Length - Mating
0.320" (8.13mm)
Row Spacing - Mating
-
Insulation Height
0.090" (2.29mm)
Contact Shape
Square
Contact Finish - Mating
Tin
Insulation Material
Polyamide (PA), Nylon, Glass Filled
Features
-
Ingress Protection
-
Insulation Color
Black
Number of Rows
1
Connector Type
Header, Breakaway
Number of Positions Loaded
All
Number of Positions
28
Shrouding
Unshrouded
Series
KK254, 42375
Contact Type
Male Pin
Overall Contact Length
0.530" (13.46mm)
Mated Stacking Heights
-
Fastening Type
Push-Pull
Contact Finish - Post
Tin
Material Flammability Rating
UL94 V-0
Current Rating (Amps)
-
Mfr
Molex
Package
Bulk
Product Status
Active
Style
Board to Board or Cable
Mounting Type
Through Hole
Contact Length - Post
0.120" (3.05mm)
Contact Finish Thickness - Mating
100.0µin (2.54µm)
Operating Temperature
-
Base Product Number
002228
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
-
Applications
Automotive, General Purpose, Medical, Telecommunications
