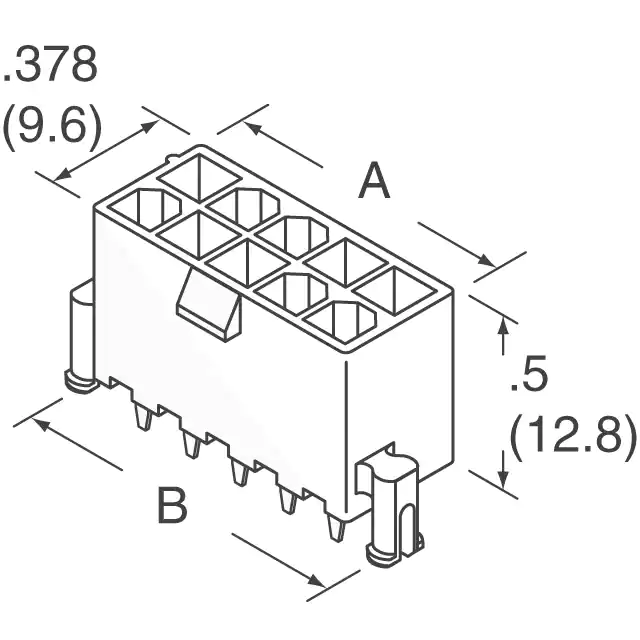

0039289108

0039289108
Molex
CONN HEADER VERT 10POS 4.2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Insulation Material
Polyamide (PA66), Nylon 6/6
Fastening Type
Locking Ramp
Operating Temperature
-
Series
Mini-Fit Jr 5566
Pitch - Mating
0.165" (4.20mm)
Overall Contact Length
-
Shrouding
Shrouded - 4 Wall
Contact Length - Mating
-
Contact Length - Post
0.138" (3.50mm)
Mated Stacking Heights
-
Base Product Number
003928
Package
Tray
Insulation Height
0.504" (12.80mm)
Contact Type
Male Pin
Termination
Solder
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Contact Material
Brass
Number of Rows
2
Style
Board to Cable/Wire
Contact Shape
Square
Material Flammability Rating
UL94 V-0
Features
Board Lock
Insulation Color
Natural
Current Rating (Amps)
-
Product Status
Active
Contact Finish - Mating
Gold
Contact Finish Thickness - Post
100.0µin (2.54µm)
Connector Type
Header
Contact Finish - Post
Tin
Mfr
Molex
Number of Positions
10
Row Spacing - Mating
0.165" (4.20mm)
Number of Positions Loaded
All
Mounting Type
Through Hole
Applications
General Purpose, Industrial, Telecommunications
Ingress Protection
-
Voltage Rating
-
