0039293046
0039293046
0039293046
Favorite Products
Share:

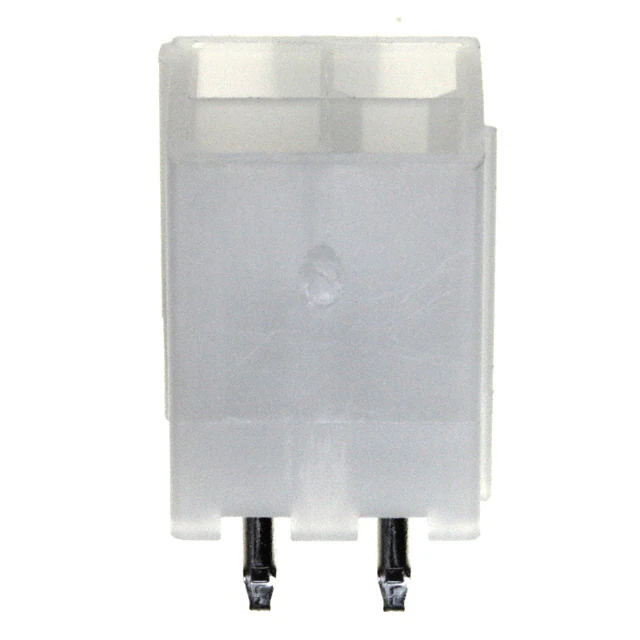

0039293046

0039293046
Molex
CONN HEADER VERT 4POS 4.2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Voltage Rating
-
Mounting Type
Through Hole
Features
-
Number of Positions Loaded
All
Number of Rows
2
Overall Contact Length
-
Insulation Height
0.504" (12.80mm)
Contact Shape
Square
Contact Finish Thickness - Post
35.0µin (0.90µm)
Contact Type
Male Pin
Ingress Protection
-
Current Rating (Amps)
-
Applications
General Purpose, Industrial, Telecommunications
Base Product Number
003929
Package
Bulk
Shrouding
Shrouded - 4 Wall
Contact Finish Thickness - Mating
35.4µin (0.90µm)
Insulation Material
Polyamide (PA66), Nylon 6/6
Operating Temperature
-
Pitch - Mating
0.165" (4.20mm)
Connector Type
Header
Number of Positions
4
Material Flammability Rating
UL94 V-2
Series
Mini-Fit Jr 5566
Termination
Solder
Contact Finish - Mating
Tin
Mated Stacking Heights
-
Product Status
Active
Contact Finish - Post
Tin
Contact Material
Brass
Insulation Color
Natural
Mfr
Molex
Row Spacing - Mating
0.165" (4.20mm)
Style
Board to Cable/Wire
Fastening Type
Locking Ramp
Contact Length - Mating
-
Contact Length - Post
0.138" (3.50mm)
