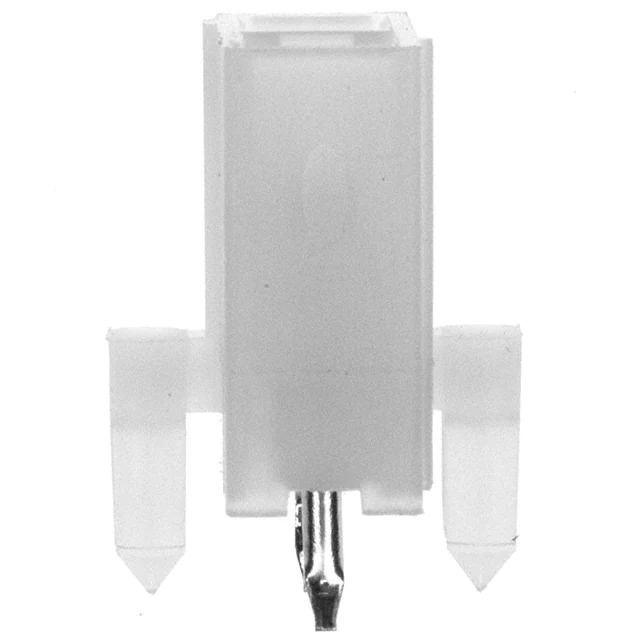

0039306027

0039306027
Molex
CONN HEADER VERT 2POS
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Finish Thickness - Post
100.0µin (2.54µm)
Number of Positions Loaded
All
Features
Board Lock
Package
Tray
Termination
Solder
Insulation Color
Natural
Contact Finish - Post
Tin
Series
Mini-Fit Jr 5566
Pitch - Mating
-
Style
Board to Cable/Wire
Fastening Type
Locking Ramp
Ingress Protection
-
Applications
General Purpose, Industrial, Telecommunications
Operating Temperature
-
Mfr
Molex
Product Status
Obsolete
Contact Length - Mating
-
Base Product Number
003930
Number of Positions
2
Insulation Height
0.504" (12.80mm)
Contact Shape
Square
Material Flammability Rating
UL94 V-2
Connector Type
Header
Mounting Type
Through Hole
Row Spacing - Mating
0.165" (4.20mm)
Shrouding
Shrouded - 4 Wall
Contact Length - Post
0.138" (3.50mm)
Contact Material
Brass
Current Rating (Amps)
-
Contact Type
Male Pin
Number of Rows
2
Overall Contact Length
-
Contact Finish - Mating
Tin
Contact Finish Thickness - Mating
100.0µin (2.54µm)
Insulation Material
Polyamide (PA66), Nylon 6/6
Voltage Rating
-
Mated Stacking Heights
-
