0346916202
0346916202
0346916202
Favorite Products
Share:

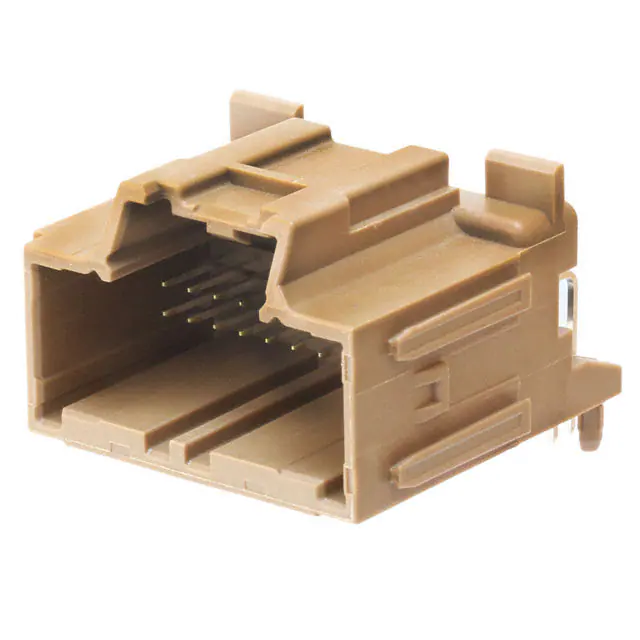

0346916202

0346916202
Molex
CONN HEADER R/A 20POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Connector Type
Header
Contact Material
Cartridge Brass
Insulation Color
Brown
Mfr
Molex
Number of Rows
2
Ingress Protection
-
Base Product Number
034691
Row Spacing - Mating
0.100" (2.54mm)
Style
Board to Cable/Wire
Shrouding
Shrouded - 4 Wall
Mounting Type
Through Hole, Right Angle
Contact Length - Mating
-
Insulation Height
0.868" (22.05mm)
Product Status
Active
Termination
Solder
Fastening Type
Latch Holder
Contact Length - Post
0.119" (3.02mm)
Number of Positions Loaded
All
Overall Contact Length
-
Contact Shape
Square
Features
Board Guide
Material Flammability Rating
-
Current Rating (Amps)
-
Voltage Rating
-
Applications
Automotive
Contact Type
Male Pin
Number of Positions
20
Mated Stacking Heights
-
Contact Finish Thickness - Post
-
Series
Stac64 34691
Package
Tray
Pitch - Mating
0.100" (2.54mm)
Contact Finish Thickness - Mating
-
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Contact Finish - Post
Tin
Insulation Material
Syndiotactic Polystyrene (SPS), Glass Filled
