0428202223
0428202223
0428202223
Favorite Products
Share:

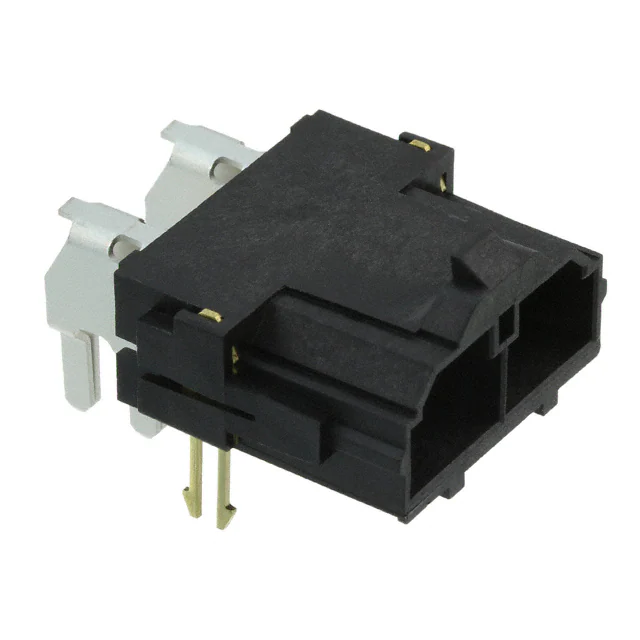

0428202223

0428202223
Molex
CONN HEADER R/A 2POS 10MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Ingress Protection
-
Style
Board to Cable/Wire
Number of Positions
2
Overall Contact Length
-
Contact Shape
Rectangular
Applications
Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number
042820
Mfr
Molex
Fastening Type
Locking Ramp
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Voltage Rating
-
Mated Stacking Heights
-
Connector Type
Header
Shrouding
Shrouded - 4 Wall
Material Flammability Rating
UL94 V-0
Pitch - Mating
0.394" (10.00mm)
Contact Length - Mating
-
Insulation Material
Polyamide (PA46), Nylon 4/6, Glass Filled
Operating Temperature
-
Package
Tube
Contact Material
Copper Zirconium Alloy
Series
Mini-Fit Sr 42820
Contact Type
Male Blade
Contact Length - Post
0.201" (5.11mm)
Insulation Height
0.421" (10.70mm)
Current Rating (Amps)
-
Product Status
Active
Number of Positions Loaded
All
Termination
Solder
Features
Board Lock
Insulation Color
Black
Mounting Type
Through Hole, Right Angle
Contact Finish Thickness - Post
100.0µin (2.54µm)
Number of Rows
1
Row Spacing - Mating
-
Contact Finish - Post
Tin
