0428204222
0428204222
Favorite Products
Share:

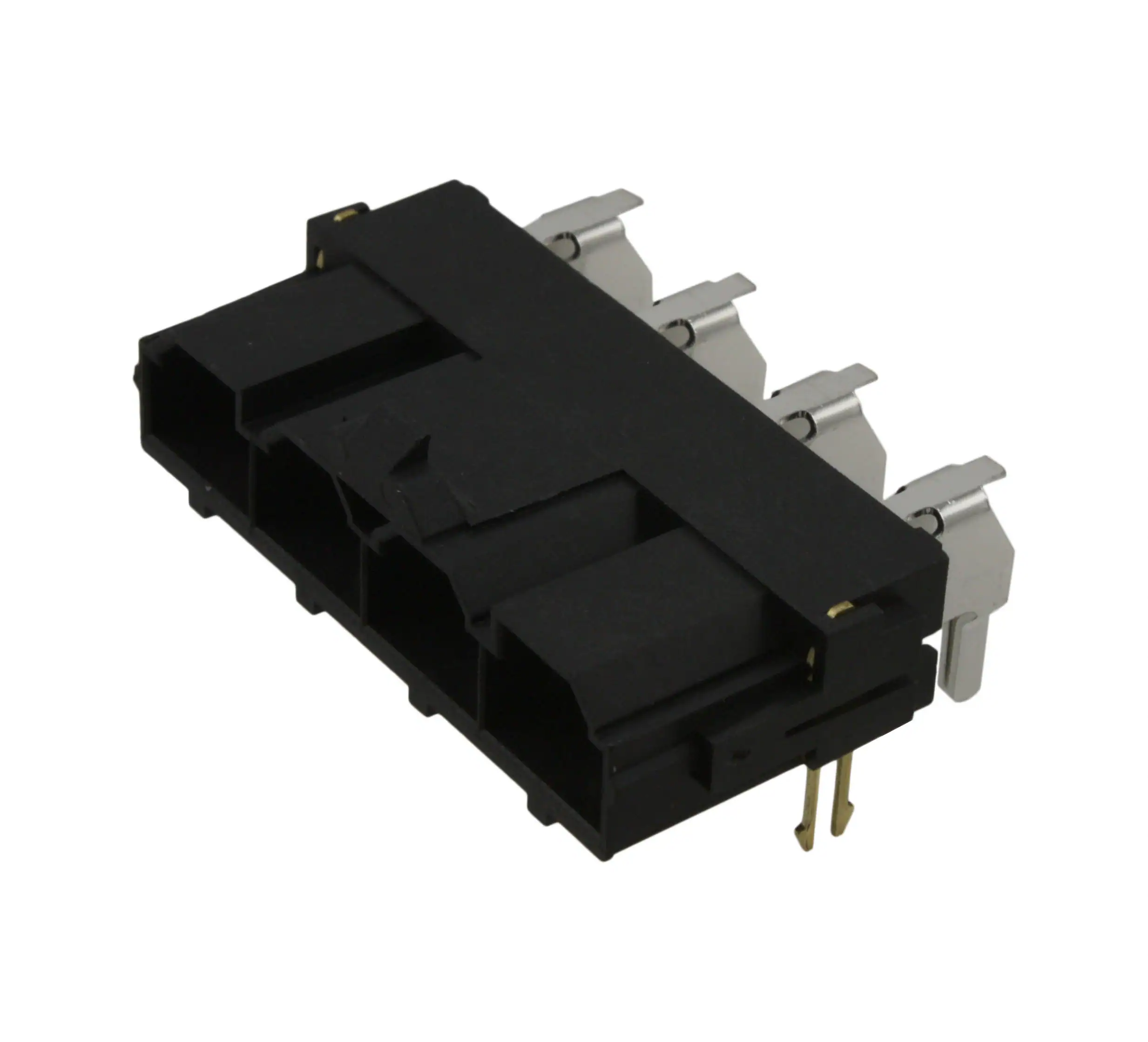

0428204222

0428204222
Molex
CONN HEADER R/A 4POS 10MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Rows
1
Mated Stacking Heights
-
Shrouding
Shrouded - 4 Wall
Contact Material
Copper Zirconium Alloy
Fastening Type
Locking Ramp
Contact Length - Post
0.201" (5.11mm)
Contact Finish - Mating
Tin
Operating Temperature
-
Voltage Rating
-
Package
Tube
Product Status
Active
Style
Board to Cable/Wire
Mounting Type
Through Hole, Right Angle
Contact Length - Mating
-
Contact Shape
Rectangular
Insulation Material
Polyamide (PA46), Nylon 4/6, Glass Filled
Features
Board Lock
Material Flammability Rating
UL94 V-0
Pitch - Mating
0.394" (10.00mm)
Number of Positions
4
Overall Contact Length
-
Contact Finish - Post
Tin
Contact Finish Thickness - Post
100.0µin (2.54µm)
Applications
Automotive, General Purpose, Industrial, Medical, Telecommunications
Series
Mini-Fit Sr 42820
Contact Type
Male Blade
Ingress Protection
-
Number of Positions Loaded
All
Termination
Solder
Contact Finish Thickness - Mating
100.0µin (2.54µm)
Current Rating (Amps)
-
Connector Type
Header
Row Spacing - Mating
-
Insulation Height
0.421" (10.70mm)
Insulation Color
Black
Base Product Number
042820
Mfr
Molex
