0430452228
0430452228
0430452228
Favorite Products
Share:

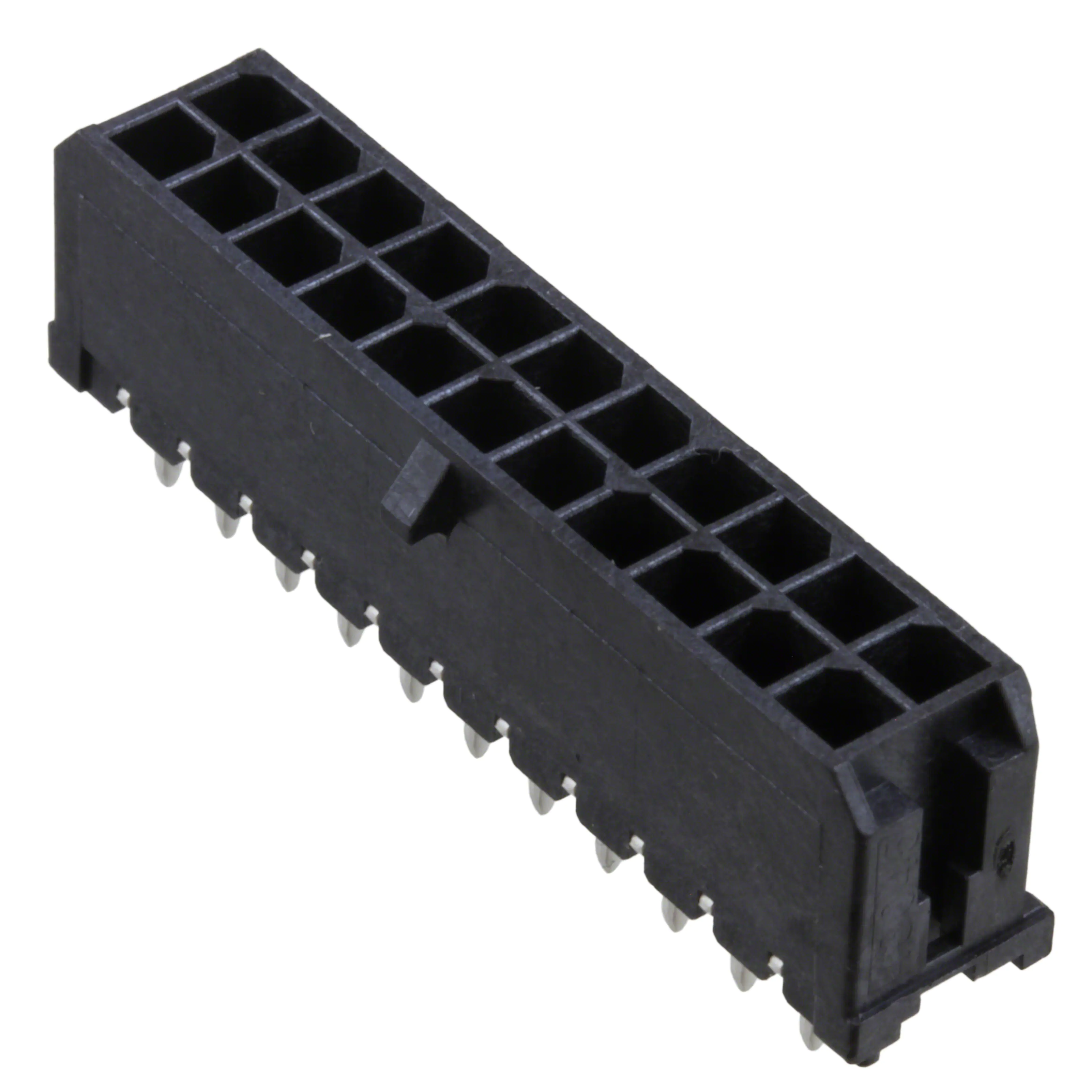

0430452228

0430452228
Molex
CONN HEADER VERT 22POS 3MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Product Status
Active
Contact Material
Brass
Pitch - Mating
0.118" (3.00mm)
Contact Length - Post
0.125" (3.18mm)
Material Flammability Rating
UL94 V-0
Mated Stacking Heights
-
Fastening Type
Locking Ramp
Insulation Height
0.390" (9.91mm)
Ingress Protection
-
Voltage Rating
600V
Package
Tray
Row Spacing - Mating
0.118" (3.00mm)
Style
Board to Cable/Wire
Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled
Applications
General Purpose, Medical, Military, Telecommunications
Connector Type
Header
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Current Rating (Amps)
8A
Number of Rows
2
Mounting Type
Through Hole
Overall Contact Length
-
Features
Board Guide
Base Product Number
043045
Number of Positions
22
Operating Temperature
-40°C ~ 105°C
Number of Positions Loaded
All
Shrouding
Shrouded - 4 Wall
Contact Finish Thickness - Post
100.0µin (2.54µm)
Mfr
Molex
Contact Type
Male Pin
Contact Length - Mating
-
Contact Shape
Square
Contact Finish - Post
Tin
Series
Micro-Fit 3.0 43045
Termination
Solder
Contact Finish - Mating
Gold
Insulation Color
Black
