0430452420
0430452420
Favorite Products
Share:

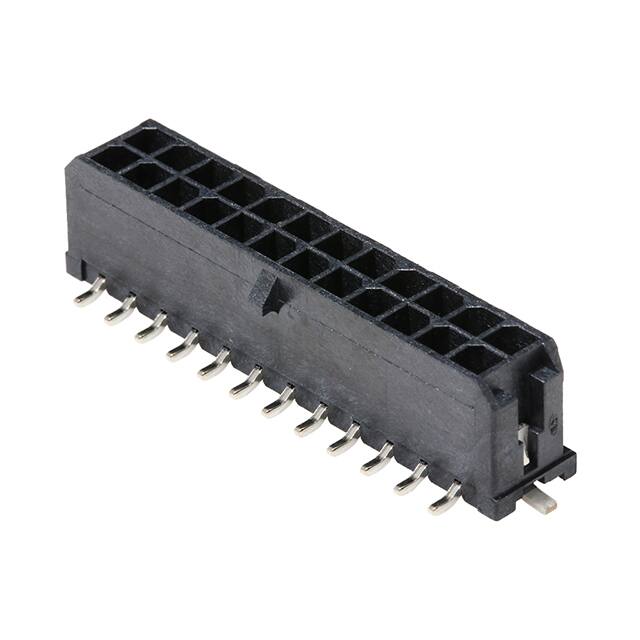

0430452420

0430452420
Molex
CONN HEADER SMD 24POS 3MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Positions
24
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Length - Post
-
Contact Shape
Square
Termination
Solder
Contact Length - Mating
-
Contact Material
Brass Alloy
Contact Type
Male Pin
Overall Contact Length
-
Base Product Number
043045
Row Spacing - Mating
0.118" (3.00mm)
Shrouding
Shrouded - 4 Wall
Contact Finish - Mating
Gold
Mounting Type
Surface Mount
Insulation Height
0.390" (9.91mm)
Contact Finish - Post
Tin
Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled
Material Flammability Rating
UL94 V-0
Product Status
Active
Pitch - Mating
0.118" (3.00mm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Operating Temperature
-40°C ~ 105°C
Applications
Automotive, General Purpose, Industrial, Medical, Telecommunications
Voltage Rating
600V
Package
Tape & Reel (TR)
Connector Type
Header
Number of Rows
2
Fastening Type
Locking Ramp
Series
Micro-Fit 3.0 43045
Number of Positions Loaded
All
Style
Board to Cable/Wire
Mfr
Molex
Features
Solder Retention
Ingress Protection
-
Insulation Color
Black
Current Rating (Amps)
Varies by Wire Gauge
Mated Stacking Heights
-
