0436500525
0436500525
0436500525
0436500525
0436500525
Favorite Products
Share:

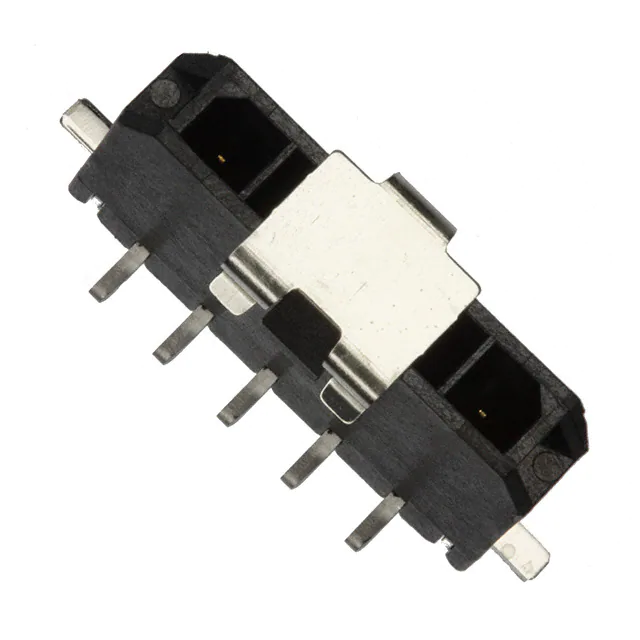

0436500525

0436500525
Molex
CONN HEADER SMD 5POS 3MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Length - Post
-
Pitch - Mating
0.118" (3.00mm)
Base Product Number
043650
Contact Finish - Mating
Gold
Series
Micro-Fit 3.0 43650
Number of Positions Loaded
All
Fastening Type
Locking Ramp
Operating Temperature
-
Number of Rows
1
Termination
Solder
Insulation Height
0.390" (9.91mm)
Contact Finish - Post
Tin
Mated Stacking Heights
17.56mm
Applications
General Purpose, Medical, Military, Telecommunications
Product Status
Active
Contact Type
Male Pin
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Features
Solder Retention
Connector Type
Header
Number of Positions
5
Shrouding
Shrouded - 4 Wall
Overall Contact Length
-
Contact Material
Brass
Voltage Rating
-
Contact Finish Thickness - Post
100.0µin (2.54µm)
Package
Tape & Reel (TR)^^Cut Tape (CT)
Mounting Type
Surface Mount
Material Flammability Rating
UL94 V-0
Insulation Color
Black
Style
Board to Cable/Wire
Current Rating (Amps)
-
Row Spacing - Mating
-
Mfr
Molex
Contact Length - Mating
-
Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape
Square
Ingress Protection
-
