0534260910
0534260910
Favorite Products
Share:

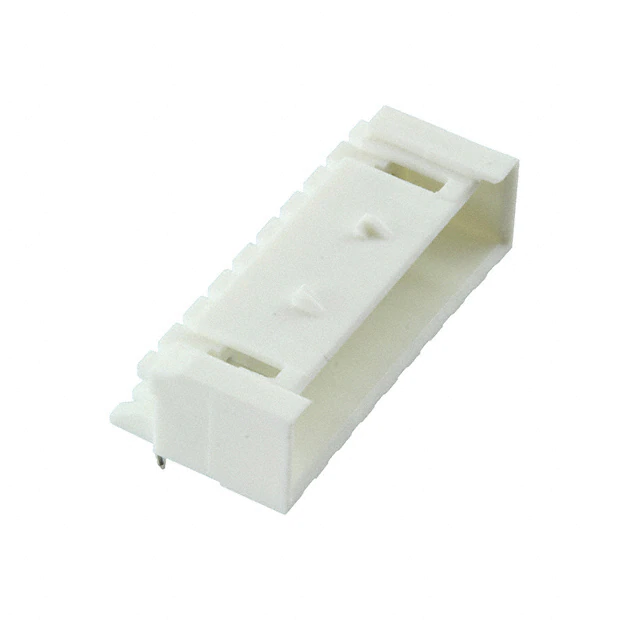

0534260910

0534260910
Molex
CONN HEADER R/A 9POS 2.5MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Mated Stacking Heights
-
Number of Rows
1
Contact Length - Mating
0.157" (4.00mm)
Shrouding
Shrouded - 4 Wall
Connector Type
Header
Ingress Protection
-
Overall Contact Length
-
Insulation Material
Polybutylene Terephthalate (PBTP), Glass Filled
Insulation Color
White
Current Rating (Amps)
Varies by Wire Gauge
Contact Finish Thickness - Post
-
Mfr
Molex
Row Spacing - Mating
-
Contact Finish Thickness - Mating
-
Contact Finish - Post
Tin
Series
Mini-Lock 53426
Contact Shape
Circular
Voltage Rating
250V
Base Product Number
053426
Mounting Type
Through Hole, Right Angle
Fastening Type
Locking Ramp
Pitch - Mating
0.098" (2.50mm)
Style
Board to Cable/Wire
Contact Finish - Mating
Tin
Number of Positions
9
Termination
Kinked Pin, Solder
Insulation Height
0.264" (6.70mm)
Features
-
Material Flammability Rating
UL94 V-0
Package
Tray
Contact Type
Male Pin
Number of Positions Loaded
All
Contact Material
Phosphor Bronze
Applications
General Purpose, Industrial
Product Status
Active
Contact Length - Post
0.134" (3.40mm)
Operating Temperature
-40°C ~ 105°C
