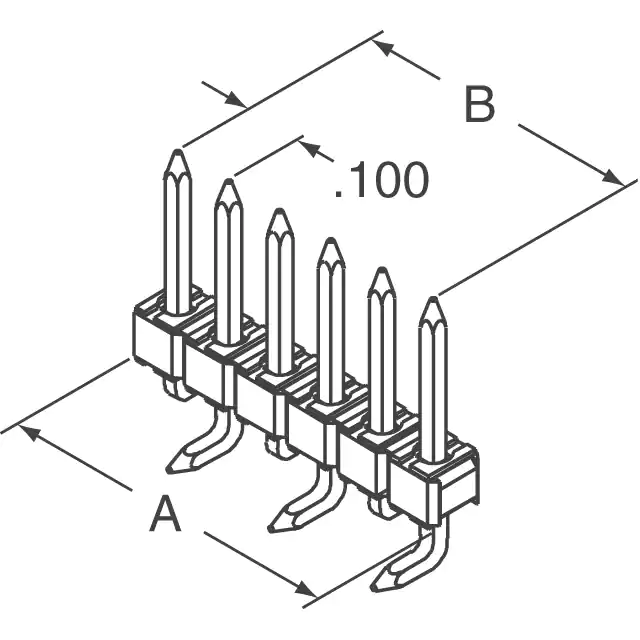

0683011015

0683011015
Molex
CONN HEADER SMD 4POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Finish - Mating
Tin
Material Flammability Rating
UL94 V-0
Package
Tube
Contact Finish Thickness - Mating
100.0µin (2.54µm)
Insulation Material
Polyamide (PA46), Nylon 4/6, Glass Filled
Series
KK254, 68301
Contact Length - Post
-
Operating Temperature
-
Ingress Protection
-
Number of Positions
4
Number of Positions Loaded
All
Contact Length - Mating
0.240" (6.10mm)
Contact Finish - Post
Tin
Contact Material
Phosphor Bronze
Current Rating (Amps)
-
Product Status
Obsolete
Connector Type
Header
Row Spacing - Mating
-
Mounting Type
Surface Mount
Contact Shape
Square
Features
-
Applications
Automotive, General Purpose, Medical, Telecommunications
Contact Type
Male Pin
Pitch - Mating
0.100" (2.54mm)
Style
Board to Board or Cable
Contact Finish Thickness - Post
100.0µin (2.54µm)
Number of Rows
1
Termination
Solder
Overall Contact Length
-
Insulation Height
0.090" (2.29mm)
Insulation Color
Black
Base Product Number
068301
Mfr
Molex
Shrouding
Unshrouded
Fastening Type
Push-Pull
Mated Stacking Heights
-
Voltage Rating
-
