0702463401
0702463401
0702463401
Favorite Products
Share:

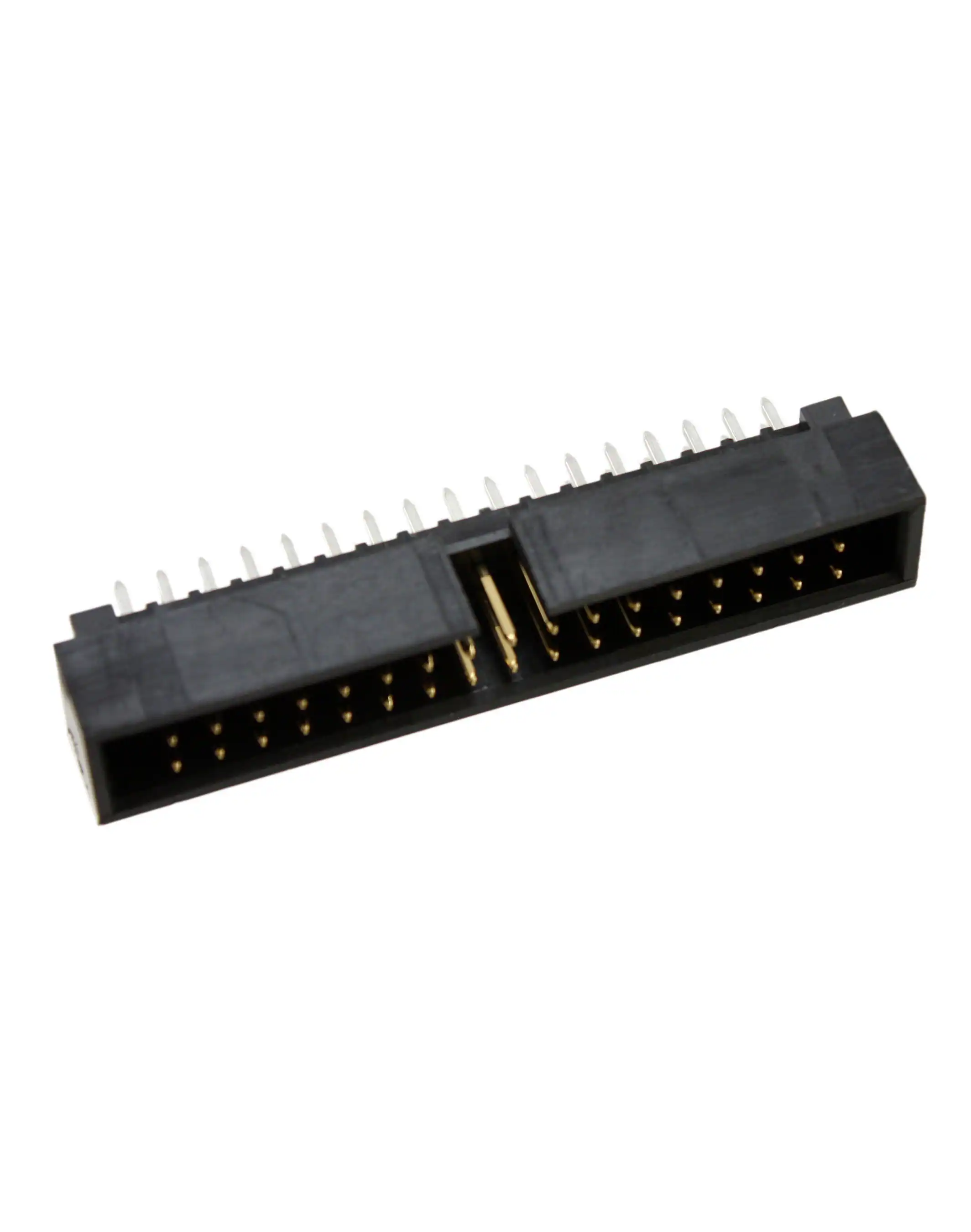

0702463401

0702463401
Molex
CONN HEADER VERT 34POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Length - Post
0.135" (3.43mm)
Current Rating (Amps)
-
Number of Positions Loaded
All
Product Status
Active
Mfr
Molex
Connector Type
Header
Contact Length - Mating
0.240" (6.10mm)
Features
Keying Slot
Contact Finish Thickness - Post
74.8µin (1.90µm)
Pitch - Mating
0.100" (2.54mm)
Style
Board to Cable/Wire
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Series
C-Grid 70246
Operating Temperature
-
Voltage Rating
-
Base Product Number
070246
Mounting Type
Through Hole
Contact Material
Phosphor Bronze
Row Spacing - Mating
0.100" (2.54mm)
Overall Contact Length
0.500" (12.70mm)
Contact Shape
Square
Contact Finish - Post
Tin
Package
Bulk
Fastening Type
Push-Pull
Insulation Height
0.365" (9.27mm)
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Contact Type
Male Pin
Number of Rows
2
Shrouding
Shrouded - 4 Wall
Insulation Color
Black
Number of Positions
34
Termination
Solder
Ingress Protection
-
Material Flammability Rating
UL94 V-0
Mated Stacking Heights
-
Applications
Automotive, General Purpose, Lighting, Medical, Telecommunications
