0705430112
0705430112
0705430112
0705430112
Favorite Products
Share:

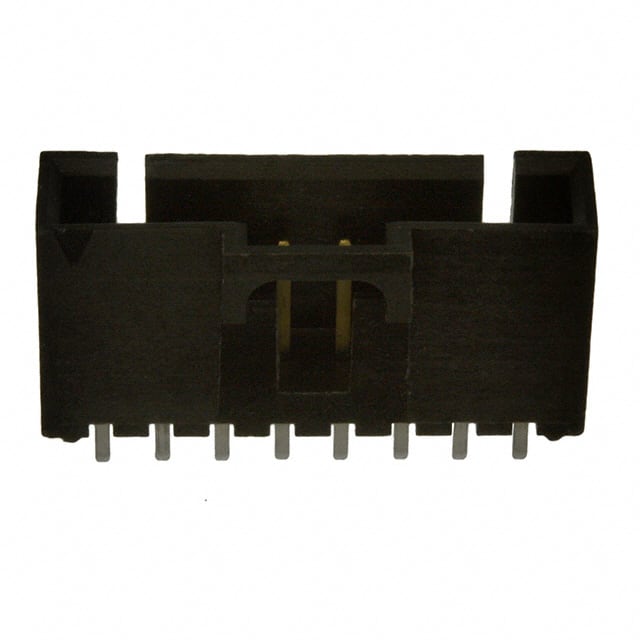

0705430112

0705430112
Molex
CONN HEADER VERT 8POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Series
SL 70543
Operating Temperature
-40°C ~ 105°C
Package
Tube
Connector Type
Header
Number of Positions Loaded
All
Contact Length - Post
0.130" (3.30mm)
Contact Shape
Square
Insulation Color
Black
Contact Length - Mating
0.240" (6.10mm)
Ingress Protection
-
Row Spacing - Mating
-
Contact Finish - Mating
Gold
Insulation Material
Polyester, Glass Filled
Mated Stacking Heights
-
Contact Finish Thickness - Post
74.8µin (1.90µm)
Number of Positions
8
Mounting Type
Through Hole
Insulation Height
0.465" (11.80mm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Features
-
Material Flammability Rating
UL94 V-0
Contact Type
Male Pin
Current Rating (Amps)
-
Base Product Number
070543
Product Status
Active
Pitch - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Contact Material
Phosphor Bronze
Voltage Rating
250V
Applications
Automotive, General Purpose, Industrial, Medical
Number of Rows
1
Shrouding
Shrouded - 4 Wall
Termination
Solder
Mfr
Molex
Style
Board to Cable/Wire
Fastening Type
Latch Holder
Overall Contact Length
0.470" (11.94mm)
