0705450011
0705450011
0705450011
0705450011
Favorite Products
Share:

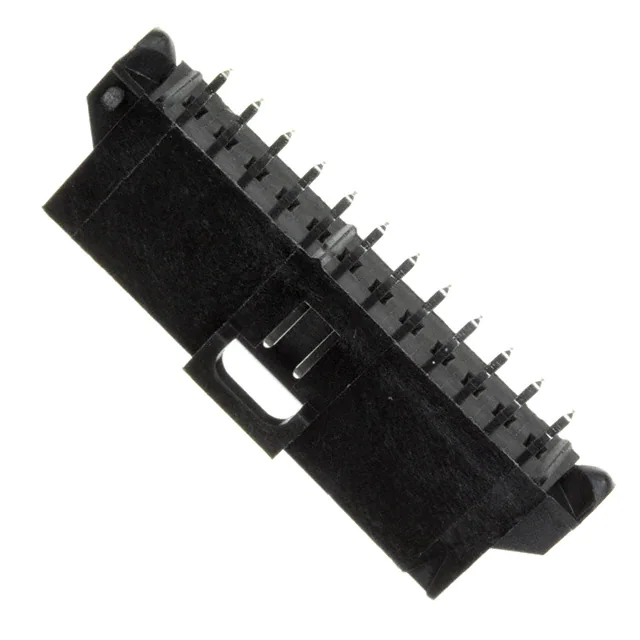

0705450011

0705450011
Molex
CONN HEADER VERT 12POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Mated Stacking Heights
-
Connector Type
Header
Contact Finish Thickness - Mating
150.0µin (3.81µm)
Overall Contact Length
0.470" (11.94mm)
Product Status
Active
Number of Rows
1
Insulation Color
Black
Fastening Type
Latch Holder
Contact Length - Post
0.130" (3.30mm)
Contact Finish - Mating
Tin
Contact Material
Phosphor Bronze
Material Flammability Rating
UL94 V-0
Mfr
Molex
Base Product Number
070545
Shrouding
Shrouded - 4 Wall
Contact Length - Mating
0.240" (6.10mm)
Contact Shape
Square
Termination
Solder
Series
SL 70545
Style
Board to Cable/Wire
Insulation Height
0.465" (11.80mm)
Contact Finish - Post
Tin
Current Rating (Amps)
-
Contact Finish Thickness - Post
-
Applications
Automotive, General Purpose, Industrial, Medical
Contact Type
Male Pin
Pitch - Mating
0.100" (2.54mm)
Number of Positions Loaded
All
Ingress Protection
-
Voltage Rating
250V
Operating Temperature
-40°C ~ 105°C
Package
Tube
Number of Positions
12
Row Spacing - Mating
-
Mounting Type
Through Hole
Insulation Material
Polyester, Glass Filled
Features
Board Guide
