0705450046
0705450046
0705450046
0705450046
Favorite Products
Share:

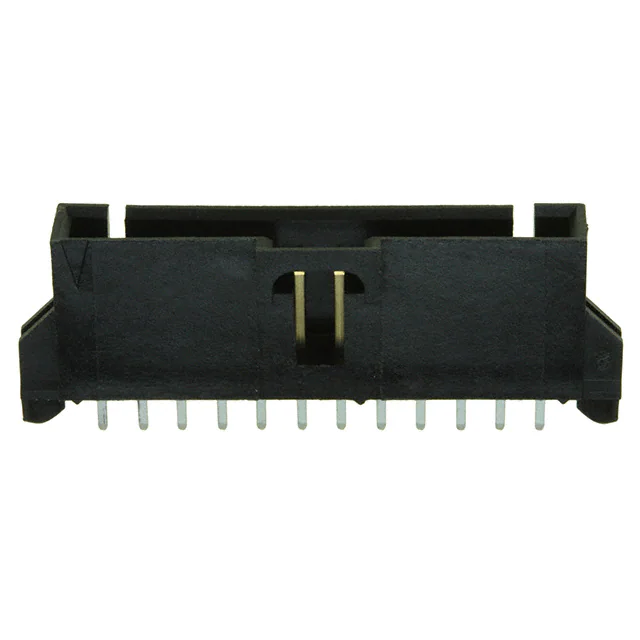

0705450046

0705450046
Molex
CONN HEADER VERT 12POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Positions
12
Insulation Color
Black
Number of Rows
1
Insulation Material
Polyester, Glass Filled
Package
Tube
Product Status
Active
Contact Type
Male Pin
Mounting Type
Through Hole
Insulation Height
0.465" (11.80mm)
Contact Shape
Square
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Voltage Rating
250V
Connector Type
Header
Pitch - Mating
0.100" (2.54mm)
Row Spacing - Mating
-
Fastening Type
Latch Holder
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
Applications
Automotive, General Purpose, Industrial, Medical
Number of Positions Loaded
All
Contact Length - Mating
0.240" (6.10mm)
Contact Length - Post
0.130" (3.30mm)
Contact Finish - Post
Tin
Contact Material
Phosphor Bronze
Features
Board Guide
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
-
Contact Finish Thickness - Post
74.8µin (1.90µm)
Style
Board to Cable/Wire
Shrouding
Shrouded - 4 Wall
Overall Contact Length
0.470" (11.94mm)
Base Product Number
070545
Mfr
Molex
Series
SL 70545
Current Rating (Amps)
-
Termination
Solder
Ingress Protection
-
