0705530024
0705530024
0705530024
0705530024
Favorite Products
Share:

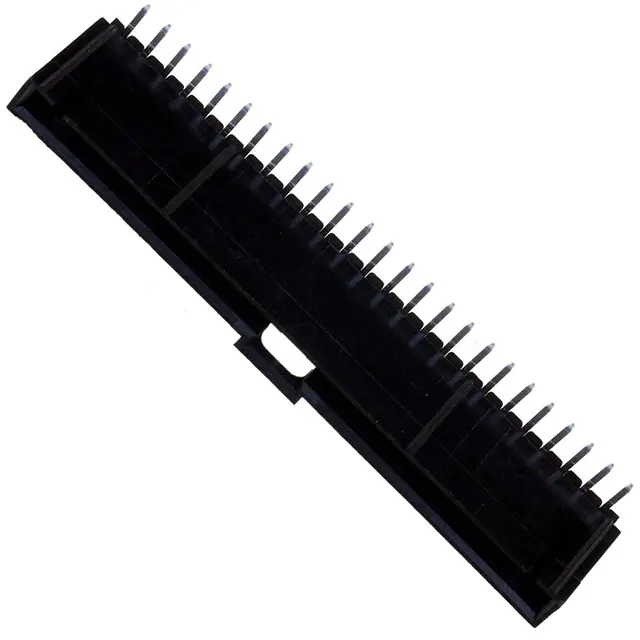

0705530024

0705530024
Molex
CONN HEADER R/A 25POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Mated Stacking Heights
-
Product Status
Active
Row Spacing - Mating
-
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Package
Tube
Contact Type
Male Pin
Number of Rows
1
Operating Temperature
-40°C ~ 105°C
Base Product Number
070553
Contact Length - Post
0.130" (3.30mm)
Contact Finish - Mating
Gold
Mfr
Molex
Series
SL 70553
Mounting Type
Through Hole, Right Angle
Contact Material
Phosphor Bronze
Pitch - Mating
0.100" (2.54mm)
Termination
Solder
Insulation Material
Polyester, Glass Filled
Number of Positions
25
Number of Positions Loaded
All
Overall Contact Length
-
Ingress Protection
-
Contact Finish Thickness - Post
74.8µin (1.90µm)
Connector Type
Header
Shrouding
Shrouded - 4 Wall
Insulation Height
0.215" (5.45mm)
Contact Shape
Square
Contact Finish - Post
Tin
Voltage Rating
250V
Contact Length - Mating
0.240" (6.10mm)
Features
-
Material Flammability Rating
UL94 V-0
Insulation Color
Black
Current Rating (Amps)
-
Style
Board to Cable/Wire
Fastening Type
Latch Holder
Applications
Automotive, General Purpose, Industrial, Medical
