09185106924
09185106924
Favorite Products
Share:

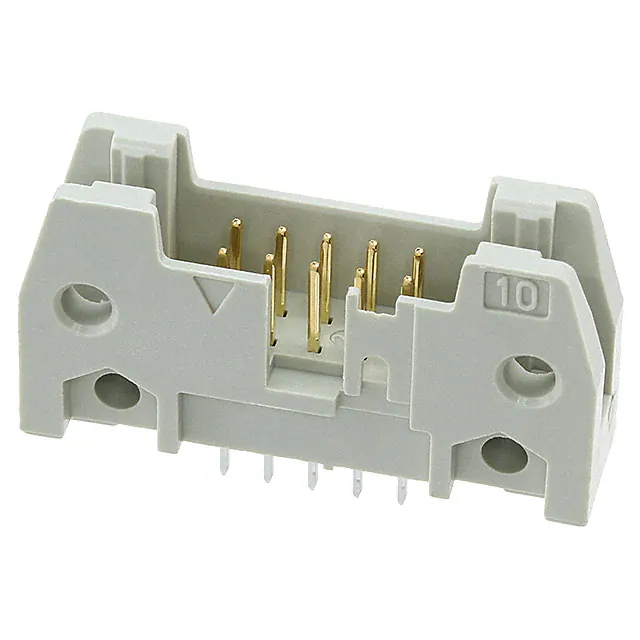

09185106924

09185106924
HARTING
CONN HEADER VERT 10POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Connector Type
Header
Material Flammability Rating
UL94 V-0
Style
Board to Cable/Wire
Mfr
HARTING
Number of Positions
10
Contact Length - Mating
0.240" (6.10mm)
Contact Length - Post
0.114" (2.90mm)
Insulation Height
0.681" (17.30mm)
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Voltage Rating
-
Applications
-
Current Rating (Amps)
-
Overall Contact Length
0.650" (16.51mm)
Pitch - Mating
0.100" (2.54mm)
Termination
Solder
Contact Shape
Square
Ingress Protection
-
Number of Rows
2
Mounting Type
Through Hole
Fastening Type
Push-Pull
Contact Finish - Post
Tin
Contact Material
Copper Alloy
Features
Keying Slot, Mounting Flange
Operating Temperature
-55°C ~ 125°C
Mated Stacking Heights
-
Package
Tray
Row Spacing - Mating
0.100" (2.54mm)
Series
SEK
Product Status
Active
Shrouding
Shrouded - 4 Wall
Contact Type
Male Pin
Number of Positions Loaded
All
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
-
Insulation Color
Gray
Contact Finish Thickness - Post
-
