09185107323001
09185107323001
Favorite Products
Share:

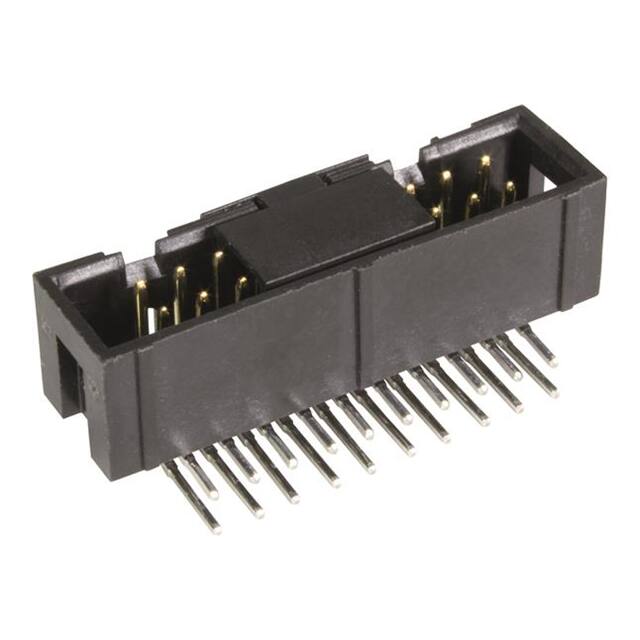

09185107323001

09185107323001
HARTING
CONN HEADER R/A 10POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Insulation Height
0.335" (8.51mm)
Fastening Type
Latch Holder
Connector Type
Header
Number of Rows
2
Mfr
HARTING
Style
Board to Cable/Wire
Contact Finish - Post
-
Features
Keying Slot, Mounting Flange
Material Flammability Rating
UL94 V-0
Voltage Rating
-
Contact Finish Thickness - Post
-
Applications
-
Product Status
Obsolete
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Current Rating (Amps)
-
Package
Bulk
Number of Positions
10
Contact Length - Mating
0.240" (6.10mm)
Contact Type
Male Pin
Mounting Type
Through Hole, Right Angle
Series
SEK
Contact Material
Copper Alloy
Pitch - Mating
0.100" (2.54mm)
Row Spacing - Mating
0.100" (2.54mm)
Termination
Solder
Contact Length - Post
0.114" (2.90mm)
Overall Contact Length
-
Contact Finish - Mating
-
Insulation Color
Black
Operating Temperature
-55°C ~ 125°C
Mated Stacking Heights
-
Number of Positions Loaded
All
Ingress Protection
-
Shrouding
Shrouded - 4 Wall
Contact Shape
Square
Contact Finish Thickness - Mating
-
