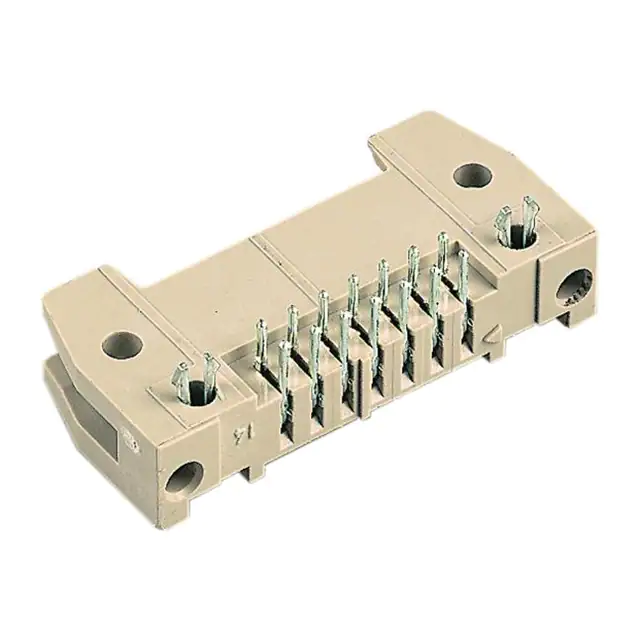

09185146973

09185146973
HARTING
SEK/IDC ANGLED MALE, 2.9MM TAILS
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Row Spacing - Mating
0.100" (2.54mm)
Insulation Height
0.335" (8.51mm)
Contact Type
Male Pin
Termination
Solder
Voltage Rating
-
Series
SEK
Contact Length - Mating
0.240" (6.10mm)
Operating Temperature
-55°C ~ 125°C
Shrouding
Shrouded - 4 Wall
Contact Material
Copper Alloy
Pitch - Mating
0.100" (2.54mm)
Contact Finish - Mating
Gold
Insulation Color
Gray
Contact Finish Thickness - Post
-
Applications
-
Overall Contact Length
-
Contact Finish - Post
Tin
Ingress Protection
-
Product Status
Obsolete
Contact Length - Post
0.114" (2.90mm)
Features
Board Lock, Keying Slot
Material Flammability Rating
UL94 V-0
Current Rating (Amps)
-
Style
Board to Cable/Wire
Mounting Type
Through Hole, Right Angle
Mfr
HARTING
Connector Type
Header
Contact Finish Thickness - Mating
-
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
14
Fastening Type
Push-Pull
Mated Stacking Heights
-
Package
Bulk
Number of Rows
2
Number of Positions Loaded
All
Contact Shape
Square
