09185347902
09185347902
09185347902
Favorite Products
Share:

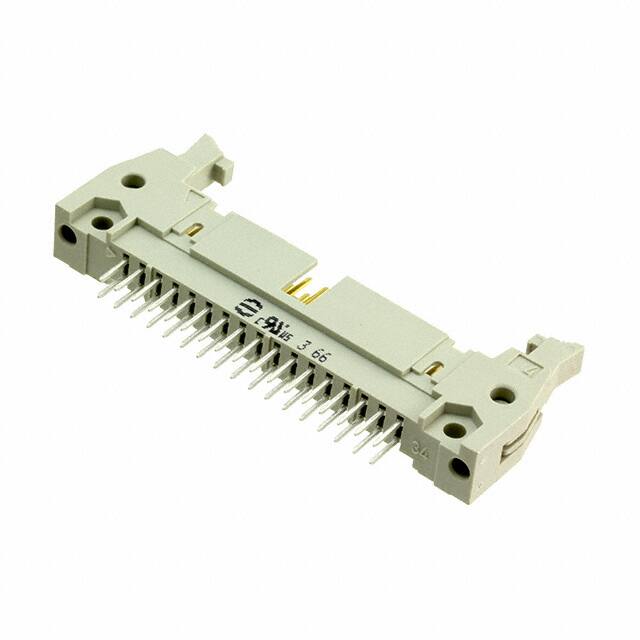

09185347902

09185347902
HARTING
CONN HEADER VERT 34POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Positions
34
Material Flammability Rating
UL94 V-0
Overall Contact Length
0.713" (18.10mm)
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Shrouding
Shrouded - 4 Wall
Features
Keying Slot, Mounting Flange
Operating Temperature
-55°C ~ 125°C
Voltage Rating
-
Insulation Color
Gray
Termination
Solder
Contact Finish - Mating
Gold
Ingress Protection
-
Product Status
Active
Style
Board to Cable/Wire
Mated Stacking Heights
-
Contact Material
Copper Alloy
Mfr
HARTING
Contact Type
Male Pin
Number of Rows
2
Applications
-
Package
Bulk
Pitch - Mating
0.100" (2.54mm)
Number of Positions Loaded
All
Mounting Type
Through Hole
Fastening Type
Latch Lock/Eject Hooks, Long
Contact Length - Mating
0.240" (6.10mm)
Current Rating (Amps)
-
Connector Type
Header
Row Spacing - Mating
0.100" (2.54mm)
Contact Length - Post
0.177" (4.50mm)
Contact Finish Thickness - Mating
-
Contact Finish - Post
Tin
Contact Finish Thickness - Post
-
Series
SEK
Insulation Height
0.681" (17.30mm)
Contact Shape
Square
