09195106953
09195106953
Favorite Products
Share:

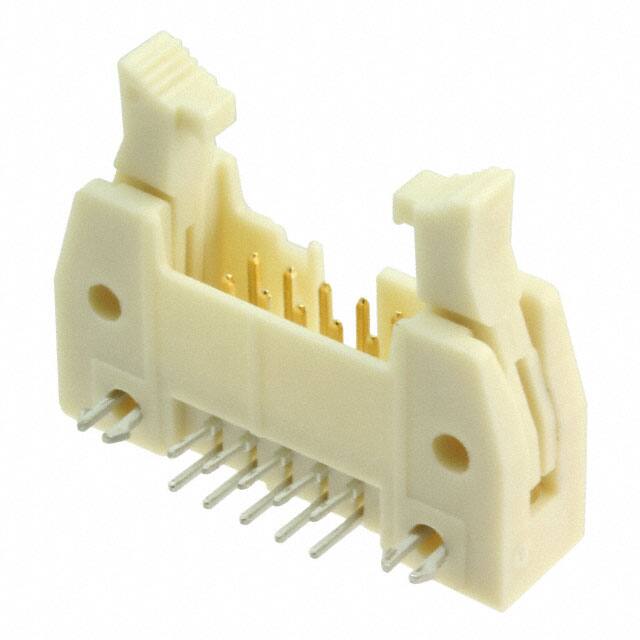

09195106953

09195106953
HARTING
CONN HEADER R/A 10POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Product Status
Obsolete
Insulation Height
0.335" (8.51mm)
Style
Board to Cable/Wire
Ingress Protection
-
Number of Positions
10
Number of Positions Loaded
All
Contact Length - Mating
0.240" (6.10mm)
Insulation Color
Beige
Mfr
HARTING
Connector Type
Header
Number of Rows
2
Contact Finish - Mating
-
Contact Type
Male Pin
Contact Finish Thickness - Mating
-
Contact Finish Thickness - Post
-
Applications
-
Package
Bulk
Mounting Type
Through Hole, Right Angle
Fastening Type
Latch Lock/Eject Hooks, Long
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Current Rating (Amps)
-
Row Spacing - Mating
0.100" (2.54mm)
Overall Contact Length
-
Contact Finish - Post
-
Contact Material
Copper Alloy
Termination
Solder
Contact Length - Post
0.114" (2.90mm)
Mated Stacking Heights
-
Series
SEK
Contact Shape
Square
Voltage Rating
-
Pitch - Mating
0.100" (2.54mm)
Shrouding
Shrouded - 4 Wall
Features
Board Lock, Keying Slot
Operating Temperature
-55°C ~ 125°C
Material Flammability Rating
UL94 V-0
