09195206323741
09195206323741
Favorite Products
Share:

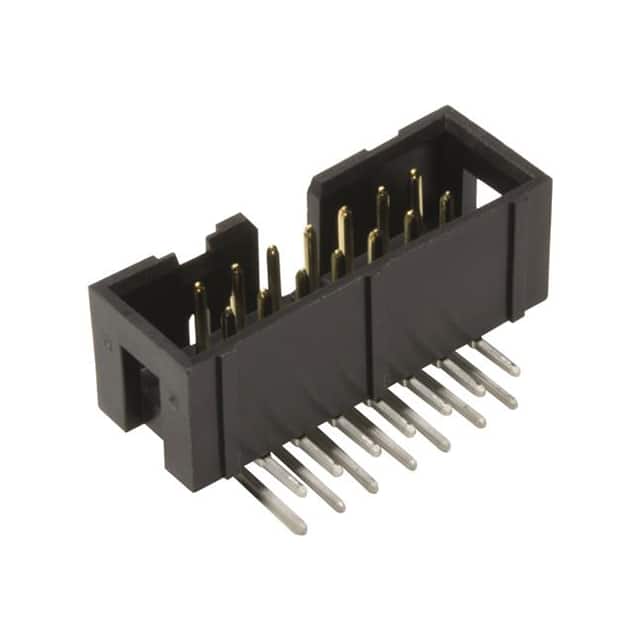

09195206323741

09195206323741
HARTING
SEK/IDC THR/SMC LOW PROFILE ANGL
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Positions Loaded
All
Number of Positions
20
Series
SEK
Connector Type
Header
Mfr
HARTING
Contact Length - Mating
0.240" (6.10mm)
Product Status
Active
Contact Finish Thickness - Mating
-
Row Spacing - Mating
0.100" (2.54mm)
Features
Keying Slot, Pick and Place
Number of Rows
2
Termination
Solder
Current Rating (Amps)
-
Package
Tape & Reel (TR)
Mounting Type
Through Hole, Right Angle
Contact Finish - Mating
-
Material Flammability Rating
UL94 V-0
Insulation Color
Black
Mated Stacking Heights
-
Pitch - Mating
0.100" (2.54mm)
Fastening Type
Latch Holder
Contact Length - Post
0.114" (2.90mm)
Voltage Rating
-
Contact Finish Thickness - Post
-
Operating Temperature
-55°C ~ 125°C
Shrouding
Shrouded - 4 Wall
Contact Finish - Post
-
Contact Material
Copper Alloy
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Contact Type
Male Pin
Style
Board to Cable/Wire
Overall Contact Length
-
Insulation Height
0.366" (9.30mm)
Contact Shape
Square
Ingress Protection
-
Applications
-
