09350026002
09350026002
Favorite Products
Share:

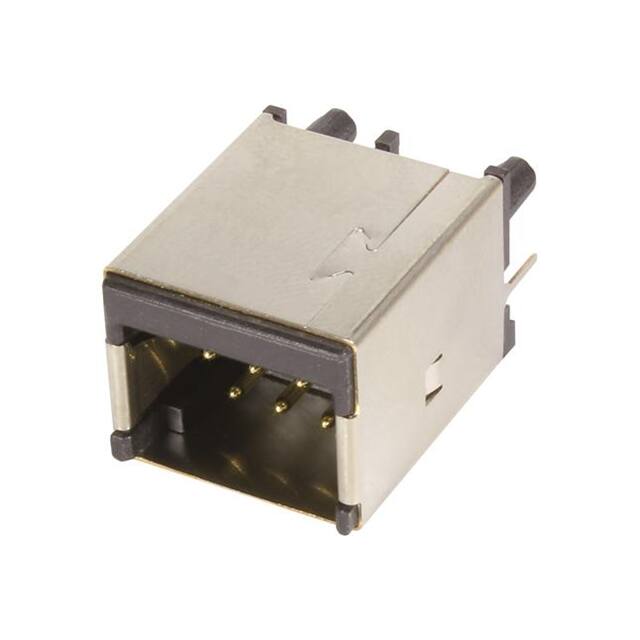

09350026002

09350026002
HARTING
CONN HEADER VERT 10POS 3MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Applications
-
Contact Shape
Circular
Series
Han® PushPull
Mounting Type
Through Hole
Current Rating (Amps)
2.5A
Number of Rows
3
Shrouding
Shrouded - 4 Wall
Fastening Type
Push-Pull
Contact Length - Mating
0.217" (5.50mm)
Contact Finish - Mating
Gold
Style
-
Contact Material
Copper Alloy
Features
Board Guide
Mated Stacking Heights
-
Contact Finish Thickness - Post
-
Number of Positions Loaded
All
Operating Temperature
-40°C ~ 85°C
Ingress Protection
-
Mfr
HARTING
Contact Finish - Post
Tin
Insulation Material
Polyamide (PA), Nylon
Number of Positions
10
Row Spacing - Mating
0.094" (2.40mm)
Pitch - Mating
0.118" (3.00mm)
Termination
Solder
Package
Bulk
Product Status
Active
Connector Type
Header
Insulation Height
0.764" (19.40mm)
Contact Finish Thickness - Mating
-
Insulation Color
Black
Contact Type
Male Pin
Contact Length - Post
0.181" (4.60mm)
Overall Contact Length
-
Material Flammability Rating
UL94 V-0
Voltage Rating
50V
