1-292206-3
1-292206-3
Favorite Products
Share:

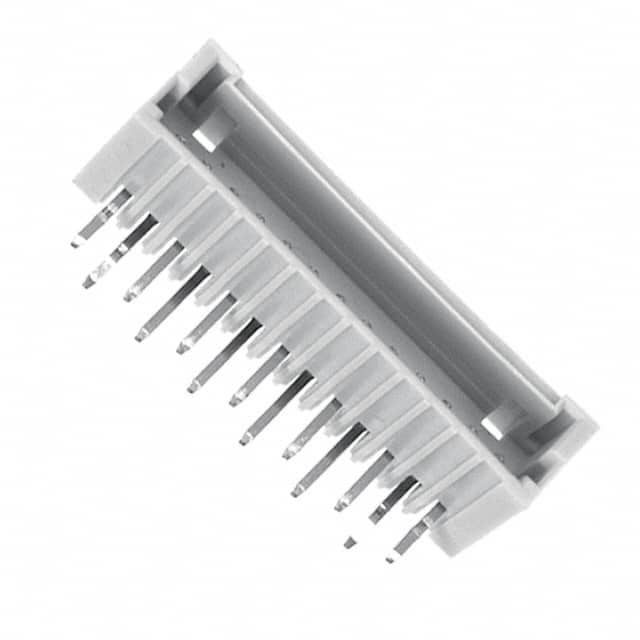

1-292206-3

1-292206-3
TE Connectivity AMP Connectors
CONN HEADER R/A 13POS 1.5MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Voltage Rating
50VAC
Contact Finish - Mating
Tin
Mounting Type
Through Hole, Right Angle
Applications
General Purpose
Connector Type
Header
Contact Type
Male Pin
Insulation Color
Gray
Contact Finish Thickness - Post
-
Mfr
TE Connectivity AMP Connectors
Pitch - Mating
0.059" (1.50mm)
Termination
Kinked Pin, Solder
Contact Length - Post
0.118" (3.00mm)
Contact Shape
Square
Insulation Material
Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating
UL94 V-0
Base Product Number
292206
Number of Positions Loaded
All
Fastening Type
Detent Lock
Contact Length - Mating
0.094" (2.40mm)
Insulation Height
0.193" (4.90mm)
Contact Finish Thickness - Mating
-
Ingress Protection
-
Mated Stacking Heights
-
Number of Positions
13
Row Spacing - Mating
-
Contact Material
Brass
Features
-
Operating Temperature
-30°C ~ 105°C
Current Rating (Amps)
Varies by Wire Gauge
Package
Tray
Product Status
Active
Number of Rows
1
Style
Board to Cable/Wire
Shrouding
Shrouded - 4 Wall
Overall Contact Length
-
Series
Mini CT
Contact Finish - Post
Tin
