10-89-1261
10-89-1261
Favorite Products
Share:

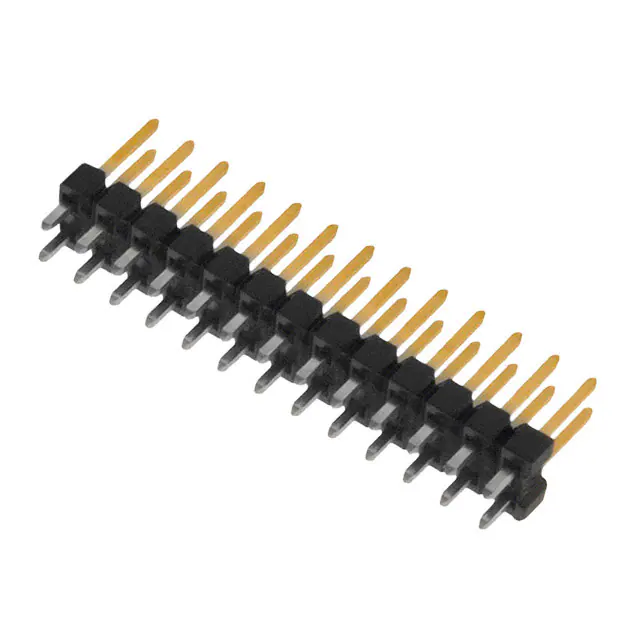

10-89-1261

10-89-1261
Molex
CONN HEADER VERT 26POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Positions
26
Overall Contact Length
0.437" (11.10mm)
Style
Board to Board or Cable
Mated Stacking Heights
-
Connector Type
Header, Breakaway
Pitch - Mating
0.100" (2.54mm)
Row Spacing - Mating
0.100" (2.54mm)
Mounting Type
Through Hole
Features
-
Current Rating (Amps)
-
Base Product Number
001089
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Ingress Protection
-
Voltage Rating
-
Applications
Automotive, General Purpose, Lighting, Medical, Telecommunications
Mfr
Molex
Contact Length - Mating
0.240" (6.10mm)
Contact Finish Thickness - Post
74.8µin (1.90µm)
Contact Type
Male Pin
Number of Positions Loaded
All
Contact Length - Post
0.107" (2.71mm)
Insulation Color
Black
Number of Rows
2
Termination
Solder
Fastening Type
Push-Pull
Insulation Height
0.090" (2.29mm)
Product Status
Obsolete
Contact Finish - Mating
Gold
Contact Material
Phosphor Bronze
Contact Shape
Square
Contact Finish - Post
Tin
Insulation Material
Polyester, Glass Filled
Material Flammability Rating
UL94 V-0
Series
C-Grid 8624
Package
Bulk
Shrouding
Unshrouded
Operating Temperature
-
