104655-4
104655-4
Favorite Products
Share:

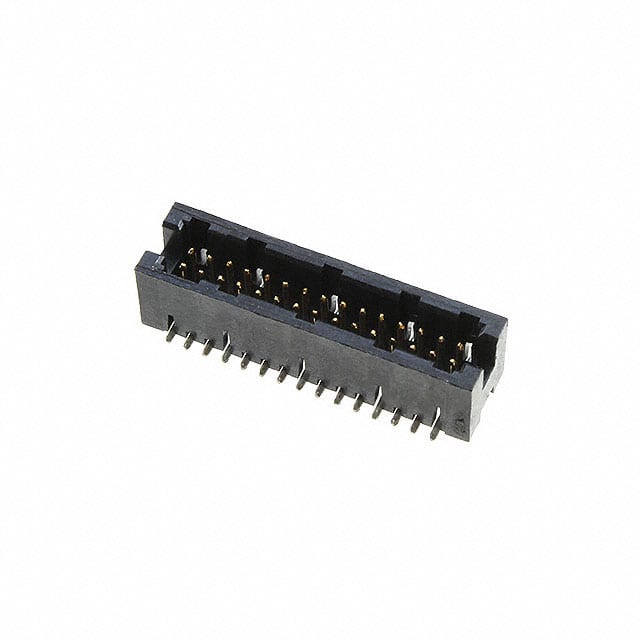

104655-4

104655-4
TE Connectivity AMP Connectors
CONN HEADER SMD 30POS 1.27MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Material Flammability Rating
UL94 V-0
Voltage Rating
-
Style
Board to Board
Contact Length - Mating
0.120" (3.05mm)
Contact Finish - Mating
Gold
Operating Temperature
-65°C ~ 105°C
Insulation Color
Black
Product Status
Active
Number of Positions
30
Shrouding
Shrouded - 4 Wall
Insulation Height
0.226" (5.74mm)
Insulation Material
Liquid Crystal Polymer (LCP)
Current Rating (Amps)
0.5A per Contact
Connector Type
Header
Number of Rows
2
Number of Positions Loaded
All
Mated Stacking Heights
6.35mm
Contact Finish Thickness - Post
150.0µin (3.81µm)
Package
Tube
Pitch - Mating
0.050" (1.27mm)
Mounting Type
Surface Mount
Contact Type
Male Pin
Row Spacing - Mating
0.050" (1.27mm)
Contact Length - Post
-
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Features
Board Lock
Applications
Automotive, General Purpose, Medical, Military, Telecommunications
Base Product Number
104655
Termination
Solder
Contact Material
Phosphor Bronze
Mfr
TE Connectivity AMP Connectors
Series
AMPMODU 50/50 Grid
Fastening Type
Push-Pull
Overall Contact Length
-
Contact Shape
Circular
Contact Finish - Post
Tin-Lead
Ingress Protection
-
