1053101314
1053101314
1053101314
Favorite Products
Share:

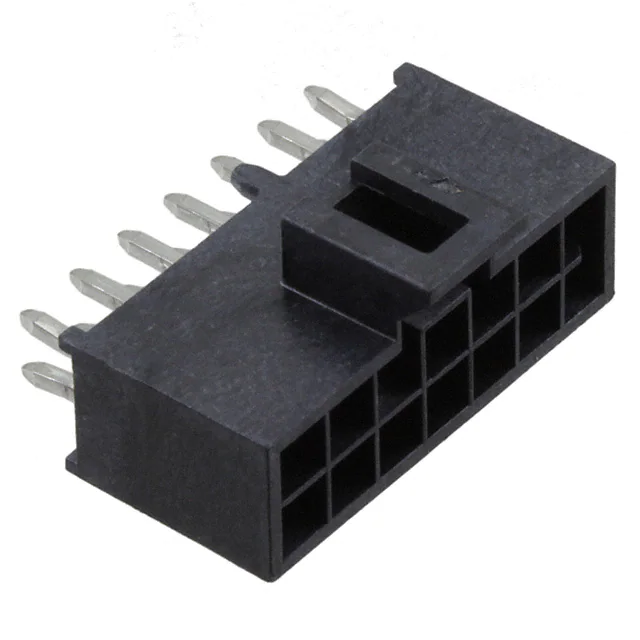

1053101314

1053101314
Molex
CONN HEADER VERT 14POS 2.5MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Type
Male Pin
Contact Shape
Square
Base Product Number
105310
Shrouding
Shrouded - 4 Wall
Contact Length - Mating
-
Voltage Rating
250V
Mfr
Molex
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Mated Stacking Heights
21.30mm
Row Spacing - Mating
0.098" (2.50mm)
Mounting Type
Through Hole
Operating Temperature
-40°C ~ 105°C
Insulation Color
Black
Fastening Type
Latch Holder
Contact Length - Post
0.126" (3.20mm)
Contact Finish - Mating
Gold
Series
Nano-Fit 105310
Number of Positions
14
Insulation Material
Liquid Crystal Polymer (LCP)
Pitch - Mating
0.098" (2.50mm)
Number of Rows
2
Overall Contact Length
-
Ingress Protection
-
Applications
Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Package
Tray
Connector Type
Header
Features
Board Guide
Material Flammability Rating
-
Current Rating (Amps)
-
Product Status
Active
Style
Board to Cable/Wire
Insulation Height
0.356" (9.05mm)
Contact Material
Brass
Number of Positions Loaded
All
Termination
Kinked Pin, Solder
Contact Finish - Post
Tin
Contact Finish Thickness - Post
59.0µin (1.50µm)
