1053121304
1053121304
1053121304
Favorite Products
Share:

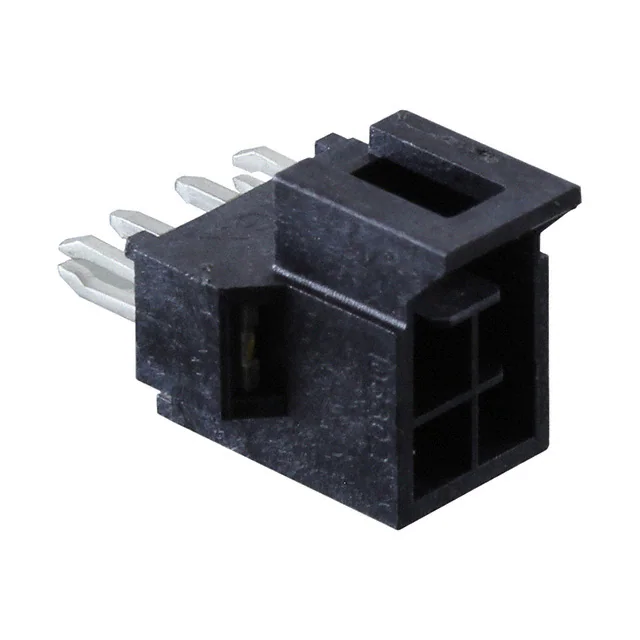

1053121304

1053121304
Molex
CONN HEADER VERT 4POS 2.5MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Connector Type
Header
Insulation Height
0.356" (9.05mm)
Style
Board to Cable/Wire
Fastening Type
Latch Holder
Base Product Number
105312
Termination
Solder
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Contact Finish - Post
Tin
Insulation Material
Liquid Crystal Polymer (LCP)
Insulation Color
Black
Row Spacing - Mating
0.098" (2.50mm)
Number of Positions Loaded
All
Material Flammability Rating
-
Pitch - Mating
0.098" (2.50mm)
Contact Length - Mating
-
Contact Length - Post
0.126" (3.20mm)
Overall Contact Length
-
Contact Material
Brass
Operating Temperature
-40°C ~ 105°C
Number of Rows
2
Mounting Type
Through Hole
Contact Shape
Square
Features
Board Lock
Package
Tray
Contact Finish - Mating
Gold
Current Rating (Amps)
-
Voltage Rating
250V
Contact Finish Thickness - Post
59.0µin (1.50µm)
Contact Type
Male Pin
Number of Positions
4
Mated Stacking Heights
21.30mm
Mfr
Molex
Series
Nano-Fit 105312
Product Status
Active
Shrouding
Shrouded - 4 Wall
Ingress Protection
-
Applications
Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
