1053122314
1053122314
1053122314
Favorite Products
Share:

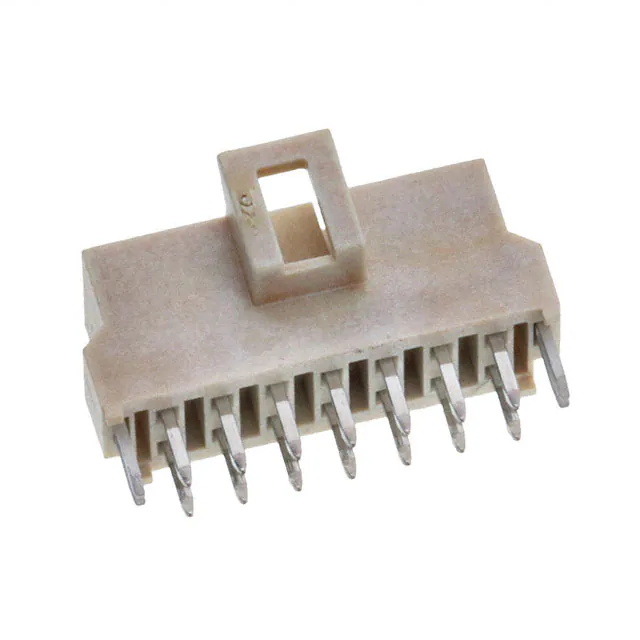

1053122314

1053122314
Molex
CONN HEADER VERT 14POS 2.5MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Ingress Protection
-
Voltage Rating
250V
Number of Positions Loaded
All
Mounting Type
Through Hole
Termination
Solder
Contact Shape
Square
Material Flammability Rating
-
Mated Stacking Heights
21.30mm
Base Product Number
105312
Product Status
Active
Connector Type
Header
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Insulation Color
Natural
Contact Type
Male Pin
Row Spacing - Mating
0.098" (2.50mm)
Style
Board to Cable/Wire
Fastening Type
Latch Holder
Contact Length - Mating
-
Overall Contact Length
-
Insulation Height
0.356" (9.05mm)
Contact Finish - Mating
Gold
Contact Finish Thickness - Post
59.0µin (1.50µm)
Applications
Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Mfr
Molex
Series
Nano-Fit 105312
Contact Material
Brass
Contact Finish - Post
Tin
Operating Temperature
-40°C ~ 105°C
Pitch - Mating
0.098" (2.50mm)
Shrouding
Shrouded - 4 Wall
Features
Board Lock
Package
Tray
Number of Rows
2
Contact Length - Post
0.126" (3.20mm)
Number of Positions
14
Insulation Material
Liquid Crystal Polymer (LCP)
Current Rating (Amps)
-
