1053141206
1053141206
1053141206
Favorite Products
Share:

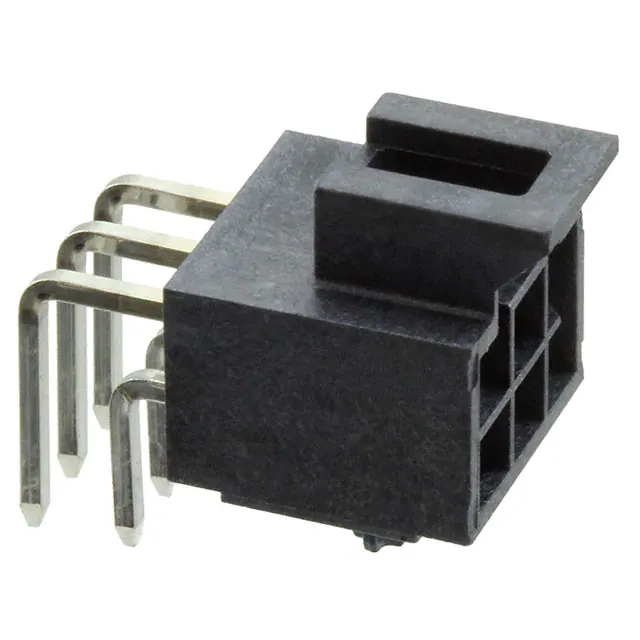

1053141206

1053141206
Molex
CONN HEADER R/A 6POS 2.5MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Shape
Square
Contact Type
Male Pin
Pitch - Mating
0.098" (2.50mm)
Insulation Height
0.247" (6.28mm)
Connector Type
Header
Style
Board to Cable/Wire
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Insulation Color
Black
Base Product Number
105314
Overall Contact Length
-
Contact Finish - Post
Tin
Contact Length - Mating
-
Contact Material
Brass
Insulation Material
Liquid Crystal Polymer (LCP)
Mated Stacking Heights
-
Package
Tray
Number of Positions Loaded
All
Voltage Rating
250V
Row Spacing - Mating
0.098" (2.50mm)
Shrouding
Shrouded - 4 Wall
Termination
Solder
Contact Finish - Mating
Gold
Features
Board Guide
Operating Temperature
-40°C ~ 105°C
Ingress Protection
-
Mfr
Molex
Series
Nano-Fit 105314
Product Status
Active
Material Flammability Rating
-
Contact Finish Thickness - Post
59.0µin (1.50µm)
Applications
Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Mounting Type
Through Hole, Right Angle
Current Rating (Amps)
-
Number of Positions
6
Number of Rows
2
Fastening Type
Latch Holder
Contact Length - Post
0.138" (3.50mm)
