1154990000
1154990000
Favorite Products
Share:

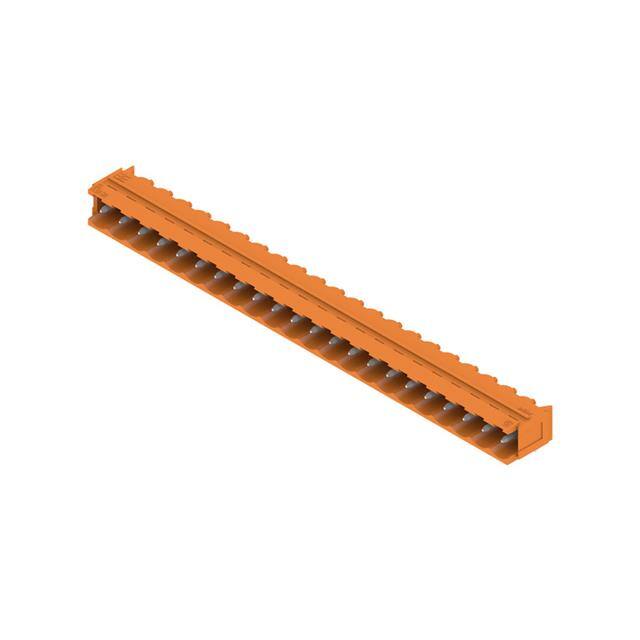

1154990000

1154990000
Weidmüller
TERM BLOCK HDR 22POS 5.08MM
Terminal Blocks - Headers, Plugs and Sockets
Available
RoHS Compliant
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Product Status
Active
Package
Bulk
Features
Interlocking (Side)
Type
Header, Male Pins, Shrouded (4 Side)
Pitch
0.200" (5.08mm)
Color
Orange
Wire Strip Length
-
Contact Tail Length
0.126" (3.20mm)
Series
Omnimate SL
Current - UL
18.5 A
Contact Mating Finish
Tin
Torque - Screw
-
Header Orientation
90°, Right Angle
Wire Gauge or Range - mm²
-
Operating Temperature
-50°C ~ 100°C
Housing Material
Polyamide (PA), Nylon, Glass Filled
Insulation Height
0.472" (12.00mm)
Positions Per Level
22
Plug Wire Entry
-
Termination Style
Solder
Wire Gauge or Range - AWG
-
Mfr
Weidmüller
Number of Positions
22
Number of Levels
1
Material Flammability Rating
UL94 V-0
Ingress Protection
-
Mounting Type
Through Hole
Voltage - IEC
400 V
Voltage - UL
300 V
Screw Size
-
Contact Material
Copper Alloy
Current - IEC
24A
