1156290000
1156290000
Favorite Products
Share:

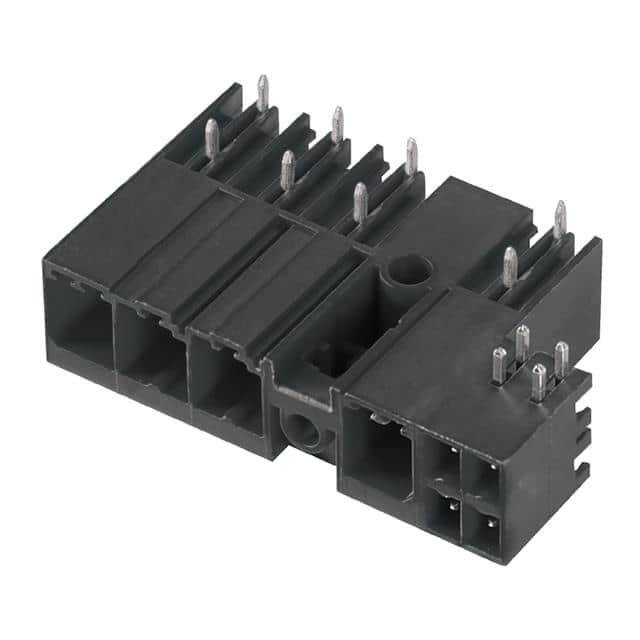

1156290000

1156290000
Weidmüller
TERM BLOCK HDR 12POS 7.62MM
Headers, Plugs and Sockets
Available
RoHS Compliant
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Current - IEC
41A
Type
Header, Male Pins, Shrouded (4 Side)
Number of Levels
Hybrid
Plug Wire Entry
-
Mfr
Weidmüller
Positions Per Level
12 (4 Power + 8 Signal)
Voltage - IEC
1 kV
Features
Latch Holder
Material Flammability Rating
UL94 V-0
Wire Strip Length
-
Contact Tail Length
0.138" (3.50mm)
Package
Bulk
Wire Gauge or Range - mm²
-
Insulation Height
0.449" (11.40mm)
Product Status
Active
Color
Black
Torque - Screw
-
Series
Omnimate SV
Mounting Type
Through Hole
Screw Size
-
Ingress Protection
IP20
Header Orientation
90°, Right Angle, Under Board
Housing Material
Polyamide (PA), Nylon, Glass Filled
Termination Style
Solder
Contact Material
Copper Alloy
Number of Positions
12
Current - UL
33 A
Wire Gauge or Range - AWG
-
Operating Temperature
130°C
Pitch
0.300" (7.62mm)
Voltage - UL
300 V
Contact Mating Finish
Tin
