147278-6
147278-6
Favorite Products
Share:

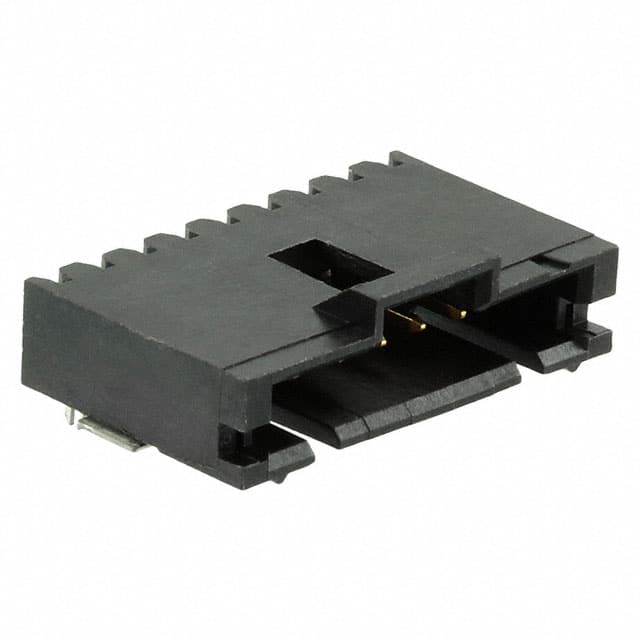

147278-6

147278-6
TE Connectivity AMP Connectors
CONN HEADER SMD R/A 7POS 2.54MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Positions
7
Features
Board Lock, Keying Slot, Solder Retention
Overall Contact Length
-
Contact Finish Thickness - Post
100.0µin (2.54µm)
Shrouding
Shrouded - 4 Wall
Insulation Height
0.200" (5.08mm)
Contact Finish - Mating
Gold
Insulation Material
Thermoplastic
Ingress Protection
-
Package
Tape & Reel (TR)^^Cut Tape (CT)
Number of Rows
1
Number of Positions Loaded
All
Contact Length - Mating
0.230" (5.84mm)
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Base Product Number
147278
Mfr
TE Connectivity AMP Connectors
Connector Type
Header
Contact Type
Male Pin
Termination
Solder
Current Rating (Amps)
3A
Mated Stacking Heights
-
Applications
Automotive, General Purpose, Medical, Telecommunications
Pitch - Mating
0.100" (2.54mm)
Contact Material
Brass
Material Flammability Rating
UL94 V-0
Row Spacing - Mating
-
Style
Board to Board or Cable
Operating Temperature
-65°C ~ 105°C
Series
AMPMODU MTE
Product Status
Active
Contact Length - Post
-
Mounting Type
Surface Mount, Right Angle
Fastening Type
Latch Holder
Contact Shape
Square
Contact Finish - Post
Tin-Lead
Insulation Color
Black
Voltage Rating
-
