15120402601000
15120402601000
Favorite Products
Share:

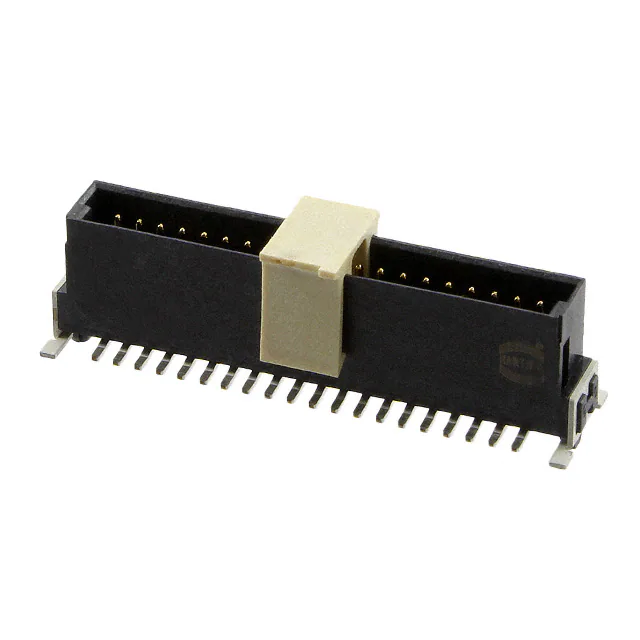

15120402601000

15120402601000
HARTING
CONN HEADER SMD 40POS 1.27MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Current Rating (Amps)
-
Number of Rows
2
Mounting Type
Surface Mount
Series
har-flex®
Product Status
Active
Contact Type
Male Pin
Contact Length - Post
-
Insulation Material
Liquid Crystal Polymer (LCP)
Features
Board Guide, Pick and Place, Solder Retention
Ingress Protection
-
Mated Stacking Heights
-
Operating Temperature
-55°C ~ 125°C
Mfr
HARTING
Pitch - Mating
0.050" (1.27mm)
Number of Positions
40
Row Spacing - Mating
0.050" (1.27mm)
Style
Board to Board or Cable
Termination
Solder
Contact Finish Thickness - Mating
-
Contact Material
Copper Alloy
Insulation Color
Black
Contact Finish Thickness - Post
-
Package
Tape & Reel (TR)^^Cut Tape (CT)
Connector Type
Header
Insulation Height
0.319" (8.10mm)
Contact Finish - Post
Tin
Material Flammability Rating
UL94 V-0
Applications
-
Shrouding
Shrouded - 4 Wall
Fastening Type
Push-Pull
Contact Length - Mating
0.157" (4.00mm)
Contact Shape
Square
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Overall Contact Length
-
Voltage Rating
-
