151208-8422-RB
151208-8422-RB
Favorite Products
Share:

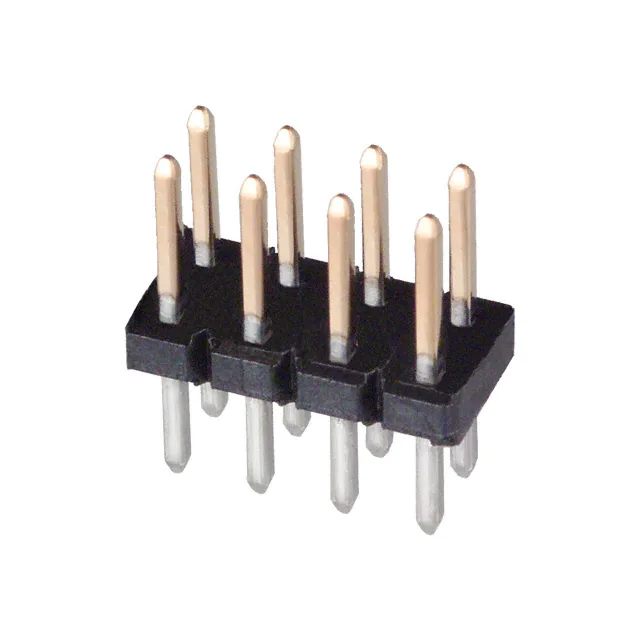

151208-8422-RB

151208-8422-RB
3M
CONN HEADER VERT 8POS 2MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Shrouding
Unshrouded
Contact Shape
Square
Style
Board to Board or Cable
Contact Finish - Mating
Gold
Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled
Ingress Protection
-
Current Rating (Amps)
1A
Contact Finish Thickness - Post
200.0µin (5.08µm)
Applications
-
Package
Bulk
Fastening Type
Push-Pull
Overall Contact Length
0.329" (8.36mm)
Number of Positions Loaded
All
Row Spacing - Mating
0.079" (2.00mm)
Contact Length - Mating
0.152" (3.86mm)
Contact Length - Post
0.118" (3.00mm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Voltage Rating
-
Product Status
Obsolete
Number of Rows
2
Mounting Type
Through Hole
Insulation Height
0.060" (1.52mm)
Contact Finish - Post
Tin
Mated Stacking Heights
-
Mfr
3M
Contact Type
Male Pin
Number of Positions
8
Insulation Color
Black
Base Product Number
151208
Series
1512
Contact Material
Copper Alloy
Connector Type
Header
Pitch - Mating
0.079" (2.00mm)
Termination
Solder
Features
-
Operating Temperature
-55°C ~ 105°C
Material Flammability Rating
UL94 V-0
