15150162601000
15150162601000
Favorite Products
Share:

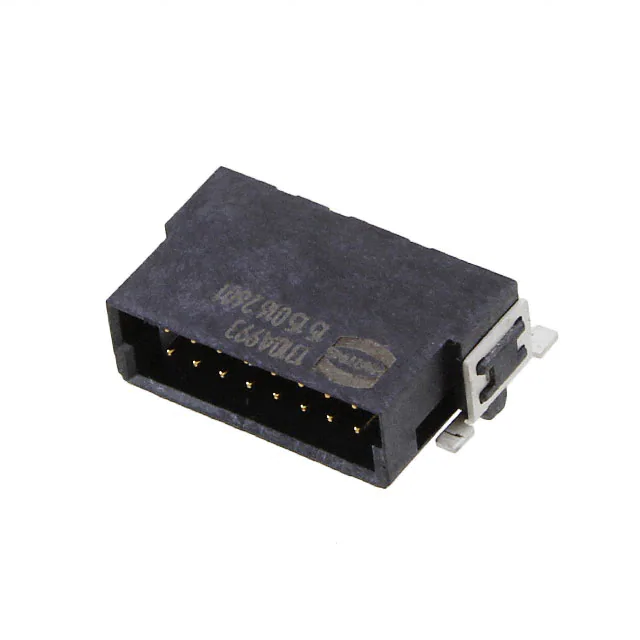

15150162601000

15150162601000
HARTING
CONN HEADER SMD R/A 16POS 1.27MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Ingress Protection
-
Series
har-flex®
Contact Type
Male Pin
Connector Type
Header
Number of Rows
2
Style
Board to Board or Cable
Fastening Type
Push-Pull
Contact Finish Thickness - Mating
-
Contact Finish - Post
Tin
Applications
-
Insulation Height
0.167" (4.25mm)
Contact Finish - Mating
Gold
Mfr
HARTING
Contact Material
Copper Alloy
Features
Board Guide, Solder Retention
Current Rating (Amps)
-
Number of Positions
16
Contact Length - Post
-
Overall Contact Length
-
Insulation Material
Liquid Crystal Polymer (LCP)
Shrouding
Shrouded - 4 Wall
Material Flammability Rating
UL94 V-0
Pitch - Mating
0.050" (1.27mm)
Termination
Solder
Row Spacing - Mating
0.050" (1.27mm)
Contact Length - Mating
-
Operating Temperature
-55°C ~ 125°C
Insulation Color
Black
Package
Tape & Reel (TR)^^Cut Tape (CT)
Product Status
Active
Number of Positions Loaded
All
Mounting Type
Surface Mount, Right Angle
Contact Shape
Square
Voltage Rating
-
Mated Stacking Heights
-
Contact Finish Thickness - Post
-
